IKO

Model # :WBB1002045

MPN #: TLA2020Z

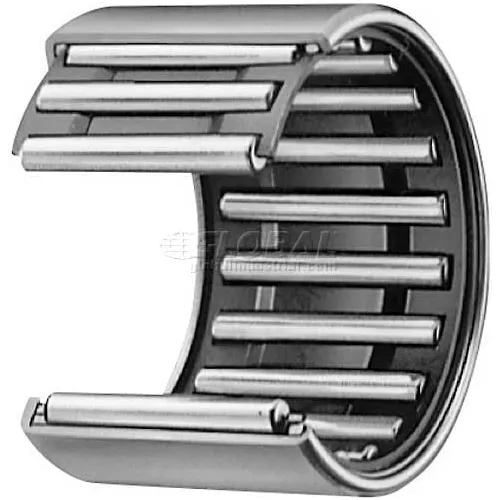

IKO Shell Type Needle Roller Bearing METRIC, 20mm Bore, 26mm OD, 20mm Width

Product Description
IKO Shell Type Needle Roller Bearing METRIC, 20mm Bore, 26mm OD, 20mm Width, Part# TLA2020Z

IKO Shell Type Needle Roller Bearing (often called Drawn Cup) consists of outer ring that is made from accurately drawn thin special steel plate, needle rollers and with or without retainer. The Shell Type Needle Roller Bearings have smallest sectional height and weight among all of needle roller bearings, and have relatively high load ratings. Needle roller bearing with retainer can be used for high-speed applications as the retainer and the thrust ring precisely guide the rollers. Shell Type Needle Roller Bearings are not provided with pre-packed lubricant. Proper lubrication must be applied when these bearings are used. Shell Type needle roller bearings are generally used with shafts without inner rings. 0.2?mRa or less shaft surface finish and HRC 58 to 64 shaft hardness are recommended. When these requirements are not possible, use of IKO Inner Rings are recommended.

Accuracy: The outer ring of Shell Type Needle Roller Bearings cannot avoid deformation by heat treatment due to their thin cross sections. It is not appropriate to take a direct measurement on the outer ring. Use Standard Mounting Dimensions shown for shaft and housing diameters. Tolerance of outer ring Width is +0 to -0.20 mm.

PRICE
$9.70

Min. purchase quantity is 6
6
6
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Width20 mm
Max Housing25.993
Static Load Rating24700 N
Min Housing25.972
Bore20 mm
Outside Dimension26 mm

Product Details

Dynamic Load Rating (N)14500
Appropriate Inner RingIRT1720
Oil Max Speed20000 rpm
Shaft Min19.987 mm
DescriptionShell Type Needle Roller Bearing - METRIC
Manufacturers Part NumberTLA2020Z
Max Shaft20
Grease Max Speed12000 rpm
BrandIKO
