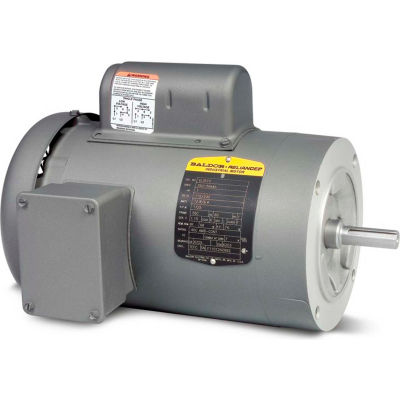

Actual product may differ from image shown
Customers Also Viewed
Product Information
Customer Review
Product Q&A
Accessories
Baldor-Reliance Single Phase Motor, VL3504, 0.5 HP, 115/230 Volts, 1725 RPM, TEFC, 56C Frame
In applications where only single phase power is utilized, these motors are available from 1/12 Hp through 15 Hp in TEFC and ODP designs. Standard foot mounted configurations are available, as well as C-Face foot mounted and C-Face footless. These are also offered in 1/4 Hp through 5 Hp as Super-E® Premium Efficient motors where energy savings is desired.
Features
In applications where only single phase power is utilized, these motors are available from 1/12 Hp through 15 Hp in TEFC and ODP designs. Standard foot mounted configurations are available, as well as C-Face foot mounted and C-Face footless. These are also offered in 1/4 Hp through 5 Hp as Super-E® Premium Efficient motors where energy savings is desired.
Features
- Pressure cast aluminum end plates with ribbed design for rigidity
- Ball bearings
- Locked drive end bearing
- Heavy gauge steel frame
- Pumps, fans, conveyors, machine tools, gear reducers.
Weights & Dimensions
- Dimension C 11.35 in
Product Details
- Power Factor 66
- Mounting Location C-Face Footless
- Bearing Drive End 6203
- Nameplate RPM 1725 rpm
- Ambient Temperature 40 °C
- KVA Code J
- Insulation Class B
- RPM Range 1701-1800 rpm
- Bearing Opp Drive End 6203
- Voltage 115/230 V
- Frame 56C
- Service Factor 1.25
- Horsepower 1/2 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Duty Continuous
- Enclosure TEFC
- Phase 1
- Amps @ 208V 4.3 A
- Full Load Efficiency 68
- Brand Baldor-Reliance
- Full Load Amps 7.4/3.7 FLA
- Design Code N
- Motor RPM 60 Hertz 1725 rpm
- Hertz 60 Hz
- Manufacturers Part Number VL3504
