ITEM #: WBB2304389

MPN #: DC1600V32V2IO

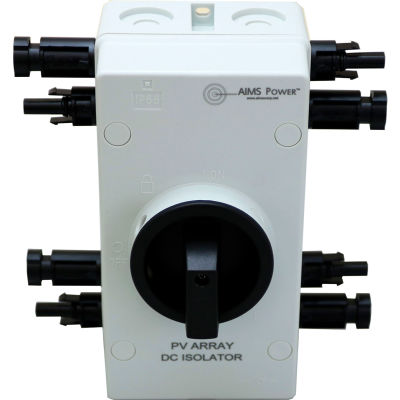

AIMS Power DC1600V32V2IO, Power Solar PV DC Quick Disconnect Switch 1000V 64 Amps

|
Questions & Answers (0)
PRICE
$114.95
Usually ships in 3 to 6 days
The AIMS quick disconnect gives your solar system extra safety and flexibility when maintaining your system. New installations of solar photovoltaic systems have increased the need for disconnect switches and overcurrent protective devices capable of interrupting currents at voltages up to 600 Vdc. Some US locations require a disconnect switch. PV system arrays generate DC current and need to be disconnected for maintenance or safety. The AIMS quick disconnect switch is also ideal for applications such as cabins or vacation homes that don't require delivery of constant solar power. Simply disconnect your solar array and reconnect when needed. Quickly disconnect DC power from your solar array to the charge controller, batteries and/or inverter

Features:
  • Outdoor rated, waterproof
  • Off and on grid applications
  • Isolated
  • SAFE-LOCK with three rotational positions reducing the risk of tampering
  • Double pull double throw 2IO
  • Ensures the disconnection of load circuits and suppression of the arc in under 5 mil secs.
  • Lock out option
  • 2 separate circuits
  • 10 Year warranty


Specifications:
  • Max combined amperage - 64 amp (2 separate 32 amp solar circuits or 1 64 amp solar circuit)
  • Output and input connections are MC4 compatible for easy set up and install 2 - 32 amp circuits
  • Up to 1000 volts at 32 amps
  • 4 pole and 2 strings
  • >
  • Arc time <2ms
  • -40° C to 70° C
  • Dimensions: 7"H x 7"W x 4.375" D
  • CE,TUV, SAA, IEC, UL certified & ROHS compliant
  • UV resistance UL 746C
