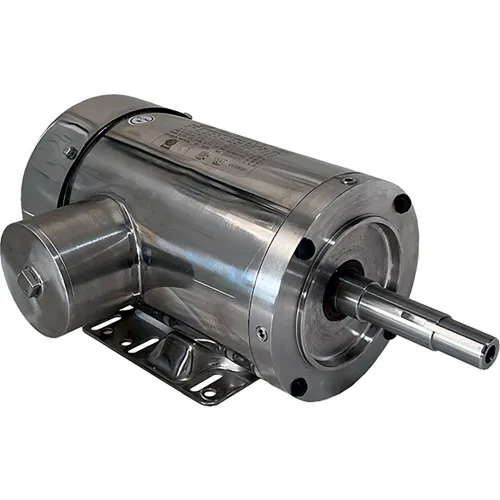

Worldwide Electric Premium Efficient SS Motor, 1.5HP, 1800 RPM, 230/460V, 145JM Frame, C-Face w/Feet

Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details.

WorldWide Electric manufactures a wide range of three-phase stainless steel motors for wash-down, high-pressure, high-temperature applications, including premium efficient, IP69K rated, BISSC/BEAG certification, TEFC or TENV, close-coupled JM, and fractional motor options.

Totally Enclosed Fan Cooled (TEFC) Enclosure

IP69K Protection
JM shaft
Encapsulated windings

1.15 SF

Class F Insulation with Class B Temperature Rise

Premium Efficiency (EISA Compliant)

NEMA Design B

Continuous Duty

304 Stainless Steel Frame, End Bracket, Junction Box, and Hardware

Stainless Steel Shaft and Key

F1 Junction Box Location

Lip Seal on DE and ODE

Round Welded Junction Box with Epoxy Potted Leads

Double Sealed Bearings Pre-Packed with Mobil Polyrex EM Grease

Inverter Duty

CSA Class 1 Division 2 Groups A, B, C, D – Temperature Code T3

Ambient -20°C to +40°C, Altitude up to 3300 Feet Above Sea Level (FASL)

Bi-directional Rotation

BISSC Certified

In Accordance with NEMA, CSA, UL, and CE
