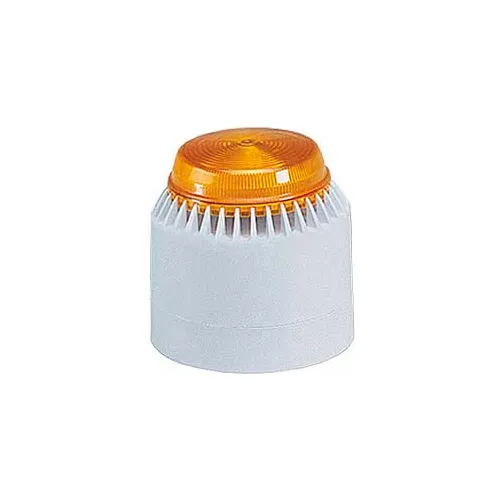

Federal Signal LP7-18-30A Strobe/sounder, 18-30VDC, Amber - LP7-18-30A
Providing an audible/visual warning, the LP7 sounder/strobe combines the features of a mini sounder with a fully integrated xenon strobe circuit. The result is an attractive unit suitable for internal or external locations where a combination of high sound output and visual signal is required. The strobe color is amber. The unit comes with a standard shallow base. Operating voltage ranges from 18-30VDC with an average of only 68mA current consumption. The LP7 has two switchable tone patterns - Sweeping and Continuous. The LP7 has a range of 82dB-100dB @ 10' (92-110dB @ 1m), dependent upon tone selected. Volume control allows for 20dB of adjustment. The LP7 features a bright xenon strobe that produces 0.7 Joules of flash energy with a flash frequency of 60 flashes per minute. The beacon will operate with any tone selected. The Federal Signal Model LP7 sounder/strobe is PLC compatible. It is ideal for wall or panel mount applications where low voltage is required. 5 Year Limited Warranty.
Providing an audible/visual warning, the LP7 sounder/strobe combines the features of a mini sounder with a fully integrated xenon strobe circuit. The result is an attractive unit suitable for internal or external locations where a combination of high sound output and visual signal is required. The strobe color is amber. The unit comes with a standard shallow base. Operating voltage ranges from 18-30VDC with an average of only 68mA current consumption. The LP7 has two switchable tone patterns - Sweeping and Continuous. The LP7 has a range of 82dB-100dB @ 10' (92-110dB @ 1m), dependent upon tone selected. Volume control allows for 20dB of adjustment. The LP7 features a bright xenon strobe that produces 0.7 Joules of flash energy with a flash frequency of 60 flashes per minute. The beacon will operate with any tone selected. The Federal Signal Model LP7 sounder/strobe is PLC compatible. It is ideal for wall or panel mount applications where low voltage is required. 5 Year Limited Warranty.
Weights & Dimensions
- Diameter 3-2/3 in
- Height 3-1/2 in
- Weight 0.69 lbs
Product Details
- Operating Temperature -40F to 176F
- Voltage 18-30 V
- Mounting Location Panel, Wall
- LED Color Family Amber
- Operating Current 0.068 mA
- Light Source Xenon
- Brand Federal Signal
- Package Quantity 1
- Decibels 82-100
- Manufacturers Part Number LP7-18-30A
- Color Family Yellow
- Flash Rate/Minute 60
Customer Review
Product Q & A
There are no questions for this product.
Federal Signal LP7-18-30A Strobe/sounder, 18-30VDC, Amber
$139.95
