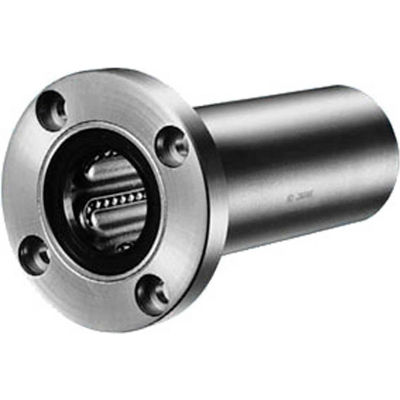

NB Corp SWF12GW 3/4" ID Round Flange Type Double-Wide Linear Bearing W/Resin Retainer, Steel
The slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
The slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
Weights & Dimensions
- Dimension T .3125"
- Dimension D 1.25"
- DR Tolerance 0-0.0005"
- DR 0.75"
- Dimension L 3.0937
- Inside Dimensions 3/4
- Flange PCD 1.718"
- Df 2.1875"
- X x Y x Z .2188 x .3438 x .2031 in
- Dynamic Weight Load 307.98 lbs
- Static Weight Load 615.97 lbs
- D Tolerance 0-0.00075"
Product Details
- Description Round Flange Type Double-Wide Linear Bearing W/Resin Retainer
- Number of Ball Circuits 5
- Brand NB Corporation
- Material Steel
- Manufacturers Part Number SWF12GW
Customer Review
Product Q & A
There are no questions for this product.

NB Corp SWF12GW 3/4" ID Round Flange Type Double-Wide Linear Bearing W/Resin Retainer, Steel
$56.95
