E-Z Lok™ (Solid Wall) Thin Wall inserts offer the advantages of E-Z Lok™ (Solid Wall) Standard Wall threaded inserts while using a hole size virtually the same as E-Z Coil™ inserts. Like all E-Z Lok™ (Solid Wall) threaded inserts, the Thin Wall design is installed using standard drills and taps. Installation is performed with a screwdriver, bolt/jam nut, or optional E-Z Lok™ drive tool.
E-Z Lok™ (Solid Wall) Thin Wall inserts are self-locking. Immediately upon installation, pre-applied LOCTITE™ on the external threads begins to set and the newly installed insert is fastener ready in minutes.
Features:
- Strong: screw machined out of solid steel for greater strength; superior pull out resistance
- Thin Wall: all the advantages of the standard E-Z Lok™ threaded inserts in a smaller overall diameter
- Easy to install: solid threaded inserts install with standard tools; simply drill, tap and thread like any ordinary fastener
- Self-Locking: pre-applied adhesive activates upon installation; inserts won't back out
- Standard size and pitch external threads eliminate need for special taps or installation tools
- Install using a screwdriver, bolt and jam nut, or optional E-Z Lok™ drive tool

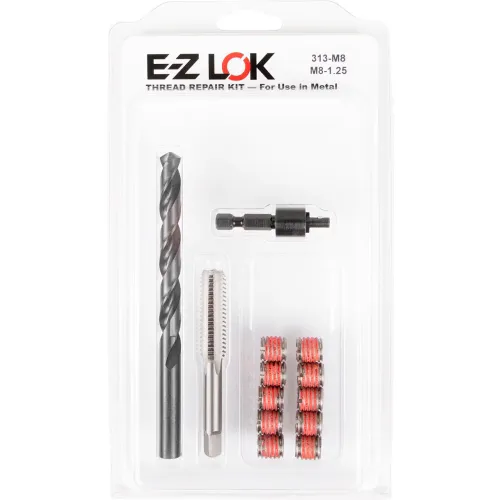

- Everything needed for installation in a convenient kit: (10x) 313-M8, (1x) A1060, (1x) 571-7120, (1x) 500-3
- Soft metals: aluminum, cast iron, magnesium, etc.
- Easy to use solution for repairing or reinforcing tapped holes in metal
