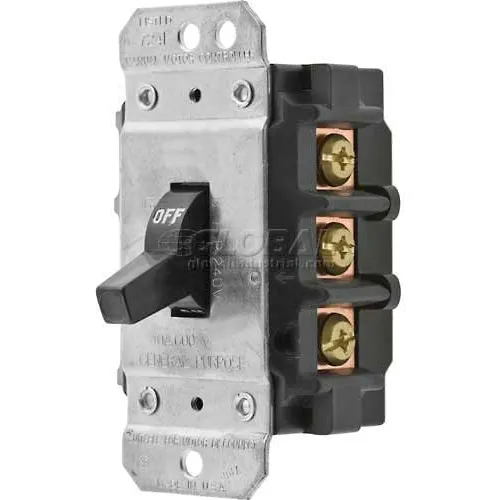

Toggle Switch 30 AMP 600V 3 Phase

Toggle Switch 30 AMP 600V 3 Phase

Item #: WBB864089

(1)

Ships in One Business Day ? Items ship from warehouse within one business day (Mon. - Fri. excluding holidays). Transit times are determined by shipping method and destination.

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $82.95

Save $4.15 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

J&D Manufacturing 30" ES Shutter Fan, 1/2 HP, 3 Phase

J&D Manufacturing 30" ES Shutter Fan, 1/2 HP, 3 Phase

30 AMP NEMA 1 Enclosed Toggle Switch

30 AMP NEMA 1 Enclosed Toggle Switch

Short Toggle Switch 30 AMP 600V

Short Toggle Switch 30 AMP 600V

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Size B 3" x 3" Stainless Steel Slotted Shim, 130 Piece Mini Assortment - Made In USA

Size B 3" x 3" Stainless Steel Slotted Shim, 130 Piece Mini Assortment - Made In USA

Advance Controls 134801 CK28.311 Contactor, 3-Pole, 120V

Advance Controls 134801 CK28.311 Contactor, 3-Pole, 120V

Ideal motor controller suitable as a disconnect. Toggle motor controllers/disconnects can be built into equipment and enclosures with either box or panel-mount installation. Strong on/off action with quick-make, slow break operation provides long-life reliability; 10,000 amp high fault short circuit withstand rating.

Weights & Dimensions

  • Depth 2.43 in
  • Width 2.25 in
  • Length 3.78 in
  • Weight 0.5 lbs

Product Details

  • 600V AC 20
  • Short Circuit Withstand Rating as Motor Disconnect 60A MAX J FUSES 10,000 RMS
  • Electrical Life 6,000 CYCLES AT RATED SWITCH LOAD
  • 120V AC 3
  • 480V AC 15
  • Terminal Torque 20 INCH POUNDS
  • Terminal Accomodations AWG MIN. #14 - AWG MAX. #10
  • Flammability Rating UL94HB/VO
  • Amperage 30 A
  • Dielectric Voltage 2,200V AC MINIMUM FOR 1 MINUTE V
  • Phase 3
  • 240V AC 7.5
  • Max Voltage 600V AC RMS V
  • Brand Bryant
  • Operating Temperature Range MAX. CONTINUOUS 60 DEG. C., MIN. CONTINUOUS W/OUT IMPACT -40 DEG C. °C
  • Short Circuit Withstand Rating As Motor Controller 125A MAX RK5 FUSES
  • Product Type Motor Control SW T
  • Poles 3

Compliance & Certifications

  • UL Certification UL 508 Industrial Control Equipment File # E70402
  • CSA Listing CSA-C22.2 No. 14 Industrial Control Equipment File # LR-46186
Customer Review

4.0

  • 5 Star

    0
  • 4 Star

    1
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Anonymous

    Date: September 20, 2018

    purchaser
    Your review:
    This was a replacement switch and it has worked very good
