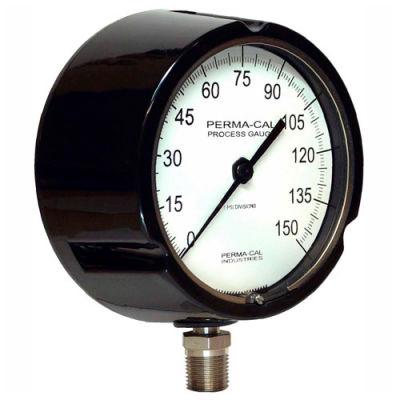

Dial may not represent actual product
Customers Also Viewed
Perma-Cal 111TIB09A23, 4.5" Dial, 0-600 psi, ½" NPT, Bottom Mount, Stainless Steel Connection, Black Turret
Perma-Cal P/N 111TIB09A23 Perma-Cal® Industries, Inc. has been a leader in quality and design of Direct Drive (helically wound bourdon tube) pressure gauges for over 35 years. Reliable in the most rugged environments, Perma-Cal® Industrial Gauges are designed to withstand hostile applications, including intense vibration, shock, pulsation and overpressure. For this reason, Perma-Cal® pressure gauges are well suited for the industrial, energy & power, oil & gas, and petrochemical industries. Design standards meet or exceed most industrial, aerospace & military specifications.
Features:
Perma-Cal P/N 111TIB09A23 Perma-Cal® Industries, Inc. has been a leader in quality and design of Direct Drive (helically wound bourdon tube) pressure gauges for over 35 years. Reliable in the most rugged environments, Perma-Cal® Industrial Gauges are designed to withstand hostile applications, including intense vibration, shock, pulsation and overpressure. For this reason, Perma-Cal® pressure gauges are well suited for the industrial, energy & power, oil & gas, and petrochemical industries. Design standards meet or exceed most industrial, aerospace & military specifications.
Features:
- Superior Reliability: Manufactured using Direct Drive technology, Perma-Cal® Pressure Gauges feature only one moving part and no liquid fill. This design allows the gauge to endure rugged environmental conditions unsuited for traditional c-tube type gauges.
- Direct Drive Design: Perma-Cal® gauges have only one moving part, no gears, linkages, or springs to wear or break. Direct Drive gauges feature a unique helically wound bourdon tube attached directly to the pointer shaft. This provides a very linear reading gauge that maintains its accuracy, and eliminates the need for any movement-amplifying gears or linkages (the parts of a C-tube type gauge that fail most frequently). Direct Drive design is ideal for environments experiencing intense vibration, pulsation and shock. In addition, Perma-Cal® gauges will withstand a 50% overpressure without going out of calibration.
- No Liquid Fill: Perma-Cal® provides a longer life gauge than liquid filled gauges without the leaking or discoloring problems of liquid fill. Perma-Cal® gauges do not suffer from any problems liquid fill is designed to solve. Because of direct drive design, there are no gears or linkages to lubricate. In addition, Perma-Cal® gauges are internally dampened to eliminate pointer flutter.
- 100% American Made: Proudly, Perma-Cal® manufactures its industrial pressure gauges in Minden, NV using only American made parts. Aspects of the manufacturing process not completed in house are outsourced to support local small businesses.
- Reduced Ongoing Cost of Ownership: In addition to reduced risk of failure by having only one moving part, Direct Drive design produces a gauge which withstands more cycles and outlasts its competitors significantly reducing the ongoing cost of ownership.
- Safety Comes Standard: Perma-Cal® Pressure Gauges are designed to the utmost standard of safety. A very low volume elastic element, rear blowout features and a solid front case produce the safest gauge possible. In contrast, c-tube type gauges have a relatively large volume elastic element that, in cases of catastrophic failure, could spill large amounts of process. Also, not all Direct Drive gauges offer a solid front case.
Product Specifications
- FACTORY FILLINGNone
- FILLABLENo
- AMBIENT OPERATING TEMPERATURE-65°F to 190°F
- MEDIA OPERATING TEMPERATURE-65°F to 250°F
- WINDOW CONSTRUCTIONAcrylic
- DIAL CONSTRUCTIONStainless Steel
- ACCURACY±½% FS
- POINTER CONSTRUCTIONAluminum
- BEZEL CONSTRUCTIONABS Plastic
- BURST PRESSURE500% of FS or 25,000 psi
- MANUFACTURERS PART NUMBER111TIB09A23
- BRANDPerma-Cal Industries, Inc.
- TYPEDirect Drive Process Gauge
- GAUGE SIZE INCHES4-1/2
- RANGE0-600 PSI
- CONNECTION LOCATIONBottom
- CONNECTION SIZE½" NPT
- CASE CONSTRUCTIONABS Plastic
- WETTED PARTS CONSTRUCTIONStainless Steel, Inconel X-750, Silver Braze
