Digital Cap Torque Tester - 100 lbFin Capacity
Item #: WBB240042
Sold By: globalindustrial.com
Ships same day. Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.
0 reviews | Write a review
Price:
$
1,396.00
Frequently Purchased Together
-
$40.95
-
$29.95
-
$13.75
-
$99.95
-
$212.95
Product Information
Customer Review
Product Q&A
Accessories

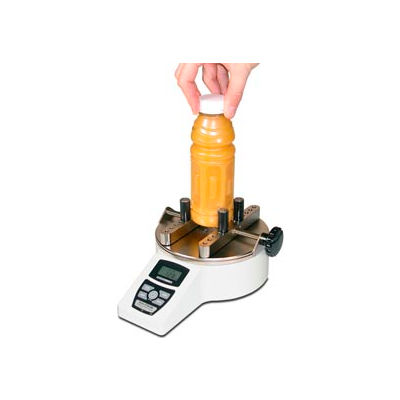

Digital Cap Torque Tester - 100 lbFin Capacity
Series TT01 Cap Torque Testers are designed to measure application and removal torque of bottle caps. Adjustable posts effectively grip a broad range of container shapes and sizes, while optional flat and adjustable jaws are available for unique profiles. A rugged aluminum design, and simple, intuitive operation allow for use in laboratory and production environments.
Class-leading accuracy of +/- 0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications.
The TT01 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon cap removal, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. Password protection is provided to prevent unauthorized changes to settings and calibration.
Series TT01 testers include MESURTM Lite data acquisition software. MESUR™ Lite tabulates continuous or single point data. Data stored in the TT01’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.
Features:
Series TT01 Cap Torque Testers are designed to measure application and removal torque of bottle caps. Adjustable posts effectively grip a broad range of container shapes and sizes, while optional flat and adjustable jaws are available for unique profiles. A rugged aluminum design, and simple, intuitive operation allow for use in laboratory and production environments.
Class-leading accuracy of +/- 0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications.
The TT01 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon cap removal, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. Password protection is provided to prevent unauthorized changes to settings and calibration.
Series TT01 testers include MESURTM Lite data acquisition software. MESUR™ Lite tabulates continuous or single point data. Data stored in the TT01’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.
Features:
- Moveable posts and optional jaws accommodate a wide range of sample shapes and sizes
- USB, RS-232, Mitutoyo, and analog outputs
- Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
- 1,000-point data memory with statistics and outputs
- Password protection prevents unauthorized changes
- Programmable set point indicators and outputs for pass/fail determination
- High-speed 7,000 Hz sampling rate accurately captures peak torque values
- Configurable audio alarms and key tones
- 5 selectable units of measurement
- MESUR™ Lite data collection software included
- Universal voltage AC adapter,
- Battery
- Quick-start guide
- USB cable
- Resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user’s guide)
- NIST-traceable certificate of calibration with data
Product Specifications
-
- CAPACITY100 lbFin
- HEIGHT INCHES4-13/16
- RESOLUTION0.05
- DEPTH INCHES10-11/16
- MANUFACTURERS PART NUMBERTT01-100
- WIDTH INCHES7-13/16
- WEIGHT LBS8.4
- CONSTRUCTIONAluminum Housing
- ACCURACY+/- 0.3 Percent of Full Scale
- JAW SIZE INCHES5-29/32 (Outer), 4-13/32 (Inner)
- BATTERY LIFE24 Hours (Backlight Off), 7 Hours (Backlight On)
- CAPACITY LBS100
- BRANDMark-10®
