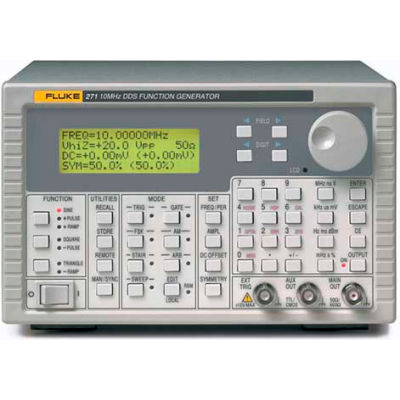

Fluke 271-U 115V 10 MHz DDS Function Generator, Resolution 7 digits or 0.1 mHz

Fluke 271-U 115V 10 MHz DDS Function Generator, Resolution 7 digits or 0.1 mHz

Item #: WBM1501978

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $2,169.00

$361.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $2,169.00 or save 5% on purchase.

Quantity

Customers Also Viewed

271-U 115V

The Fluke 271 is a high-performance function generator that uses Direct Digital Synthesis techniques. A wide variety of standard waveforms are provided and an arbitrary waveform capability allows it to be used to generate non-standard and user-defined waveforms. Extensive modulation capabilities make this a highly versatile signal source. Waveforms Standard waveforms are sine, square, positive pulse, negative pulse, triangle, ramp up, ramp down. Additionally arbitrary waveforms, multi-level square waves, waveform hopping and pseudo-random noise can be generated All waveforms are available up to 10 MHz. However, the purity of triangle, ramp, and multi-level square wave waveforms is not specified above the specific ranges of the generator. Direct digital synthesis Direct digital synthesis (DDS) is a technique for generating waveforms digitally using a phase accumulator, a look-up table and a digital-to-analog-converter (DAC). The accuracy and stability of the resulting waveforms is related to that of the crystal master clock. The DDS generator offers not only exceptional accuracy and stability but also high spectral purity, low phase noise and excellent frequency agility. Arbitrary (and complex) A number of complex waveforms are pre-programmed in the ROM. A further five, user defined, waveforms may be loaded via the digital interfaces and stored in non-volatile RAM. The frequency range and all waveform points can be continuously output up to 27 kHz, beyond which they are sampled at initially. Trig/Sweep out The Fluke 271 is capable of Multi-function output, depending upon the mode. Except when it is in sweep mode, the output is that of the trigger generator at CMOS/TTL levels from 1 kW. While in Sweep mode, the output is a 3-level waveform, changing from high (+4 V) to low (0 V) at the start of sweep, with narrow 1 V pulses at each marker point.

Product Specifications

  • TYPE10 MHz DDS Function Generator
  • PACKAGE QUANTITY1
  • BRANDFluke Electronics
  • MANUFACTURERS PART NUMBER271-U 115V
Customer Review

Not Yet Reviewed

Product Q & A

There are no questions for this product.
