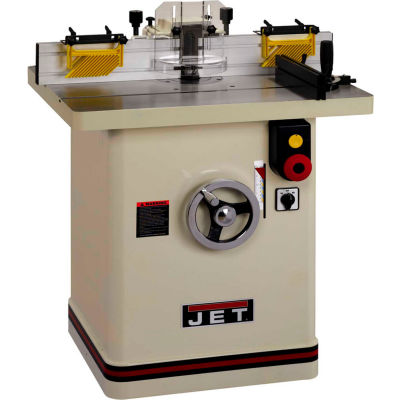

JET 708323 Model JWS-35X3-1 3HP 1-Phase 4-Speed Shaper

JET 708323 Model JWS-35X3-1 3HP 1-Phase 4-Speed Shaper

Item #: WBB57784

Not Yet Rated

Free Shipping

Enter zip code for delivery date estimate

Shipping to 10465 change

$3,562.86 up to 17% OFF

Price: $2,949.99

$491.66/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

This heavy-duty JET Shaper is available with a powerful 3HP, 1Ph motor with magnetic controls. The four-speed (4000, 6000, 8000, 10000 RPM) step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters. The spindle is reversible, and receives maximum power transfer from the v-belt. The independently adjustable fences have micro adjust controls for precise positioning.

Features:

  • Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
  • Powerful 3HP, 1Ph motor with magnetic controls
  • Poly-V-belt transfers maximum power to the spindle
  • Spindle height scale
  • Starting pins for irregular shaping
  • Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
  • Reversible spindle speeds for diverse shaping jobs
  • 4 Dust port built into fence for convenient hookup to any dust collection system

Product Specifications

  • MANUFACTURERS LIMITED WARRANTY YEARS5
  • REVERSIBLEYes
  • SPINDLE DIAMETER INCHES1-1/4
  • SPINDLE SIZE UNDER NUT INCHES4
  • TABLE OPENING DIAMETER INCHES6-19/64
  • TABLE INSERT OPENING DIAMETER INCHES2-9/16, 4-5/16
  • TABLE T-SLOT INCHES3/4 X 3/8
  • MAXIMUM SPINDLE DIAMETER INCHES1-1/4
  • MAXIMUM DIAMETER CUTTER BELOW TABLE INCHES6
  • MAXIMUM DIAMETER CUTTER ABOVE TABLE INCHES7-1/2
  • FENCE TRAVEL (MAJOR & MINOR) INCHES4, 1
  • VOLTAGE230
  • FENCE SIZE INCHES (L X H)16 X 4-3/4
  • MODELJWS-35X3-1
  • SPINDLE TRAVEL INCHES4
  • TYPEShaper
  • MANUFACTURERS PART NUMBER708323
  • AMPS14
  • BRANDJET
  • SPINDLE SPEED (RPM)4000/6000/8000/10000
  • TABLE HEIGHT FROM FLOOR INCHES33-1/4
  • TABLE SIZE INCHES (L X W)32-1/4 X 26-3/4
  • DUST PORT OUTSIDE DIAMETER INCHES (FRONT)4
  • DUST COLLECTION MINIMUM REQUIRED (CFM)600
  • MOTOR HORSEPOWER3
  • MOTOR PHASE1
  • ELECTRIC CONTROLSMagnetic Starter
  • MOTOR VOLTAGE220
  • PREWIRED VOLTAGE230
