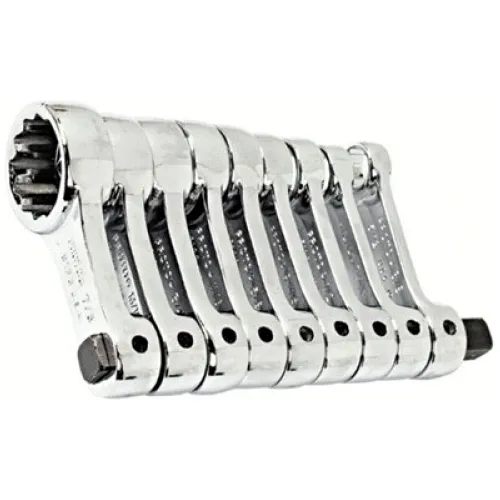

Proto J5100 5100 Torqueplus™ 9 Pc Torque Adapter Set

Features: Provides the operator with nut-turning power that requires only a fraction of the force required when using conventional tools Input and output rotation is in the same direction Reaction bar rotation is opposite to input direction and must rest securely against a rigid object to withstand the generated reaction force By removing 4 screws, heads may be easily disassembled for inspection, cleaning and lubrication

Proto® Torque Multiplier 2200 ft-lbs, 19-19/32" Long, W/NIST Cert Maximum rated input: 162 ft-lbs (220 Nm). Maximum rated output: 2200 ft-lbs (2983 Nm). Standard torque accuracy is +/- 5% of reading. Reaction system: tubular reaction bar. Gear system: two stage planetary. Angle of turn protractor: 5° increments. Anti-backlash device: self-contained, 3 position. Certification documents traceable to N.I.S.T. (National Institute of Standards and Technology).

Proto® Torque Multiplier 2200 ft-lbs, 19-19/32" Long Maximum rated input: 162 ft-lbs (220 Nm). Maximum rated output: 2200 ft-lbs (2983 Nm). Standard torque accuracy is +/- 5% of reading. Reaction system: tubular reaction bar. Gear system: two stage planetary. Angle of turn protractor: 5° increments. Anti-backlash device: self-contained, 3 position.

Features: Strong-Steel housing protects the internal gears against impacts Strong-handle for safer support Ideal for use in building and maintenance machinery and in the automotive industry where requires big torques appliances and with reduced works areas Torque ratio: 1:3.5 Female drive: 3/4" Male drive: 3/4" Maximum torque: 286 ft-lb Input, 1000 ft-lb Output Length: 2-7/16"

Proto® Torque Multiplier 3200 ft-lbs, 19-19/32" Long Maximum rated input: 173 ft-lbs (235 Nm). Maximum rated output: 3200 ft-lbs (4338 Nm). Standard torque accuracy is +/- 5% of reading. Reaction system: tubular reaction bar. Gear system: two stage planetary. Angle of turn protractor: 5° increments. Anti-backlash device: self-contained, 3 position.
