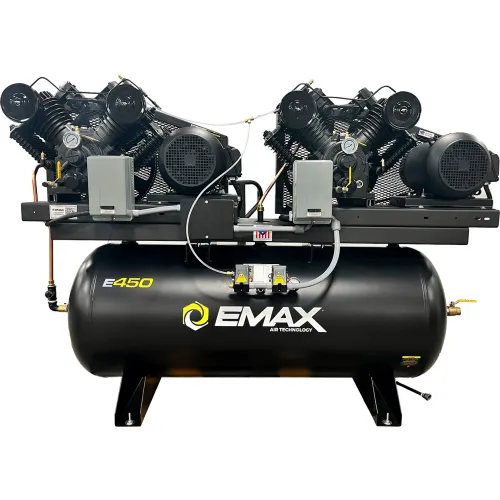

EMAX&#174; Duplex Alternating compressors with pressure lube pump, isolator pads, belt tensioner, auto drain, alternating switch allow the units to alternate from one pump to another. The unit will pump up to set pressure, and then under the next start-up sequence the opposing pump will start. These units also have a feature that if one pump will not maintain set pressure and not keeping up with demand, then both units will come on and run until the unit hits the pressure setting after which it will go back into normal alternating mode. There are (2) of our low RPM solid cast iron patented pressure lubricated pumps paired with (2) industrial grade 1750 RPM motors, (2) Magnetic Starters ran with a relay switch all installed on our ASME certified 120 Gallon Horizontal tanks. This unit as all the features to make using it a breeze from its automatic tank drain to the belt tensioners, this compressor has it all! Riser<ul Style="Margin-Top:0Px; Padding-Top: 5Px; Padding-Bottom: 5Px;"><li>Our pump mounting plate riser is designed to raise the pump allowing 360-degree air flow from the flywheel to cool the pump oil reservoir. Pump mount risers also allow air to flow under the pump for maximum cooling</li></ul>Continuous Run/Dual Control<ul Style="Margin-Top:0Px; Padding-Top: 5Px; Padding-Bottom: 5Px;"><li>Dual Control: Dual control allows users to run the unit with automatic start/stop control, or the optional continuous run setting during high duty cycle peak demand periods</li><li>Optional Settings: The optional continuous run setting allows the pump to cool internally and save the electric motor and magnetic switch from excessive frequent starting and stopping of the electric motor</li></ul>Pressure Lube<ul Style="Margin-Top:0Px; Padding-Top: 5Px; Padding-Bottom: 5Px;"><li>Pressure Lubrication is the second type of lubrication systems. This system is more technically advanced and a far more precise method to deliver oil to critical parts of the pump, resulting in longer pump life. The oil is pumped through an oil filter and into the pump where it is then recycled and reused. Since the oil pump is delivering the oil more efficiently the viscosity of the oil is less critical than with a splash system. In the air compressor industry, it is typically more costly to upgrade to pressure lubrication systems. Our high efficiency manufacturing facility 0to the tank. With this radiator, we target outlet air to the tank within 10 degrees of ambient temperature</li></ul>Tensioner<ul Style="Margin-Top:0Px; Padding-Top: 5Px; Padding-Bottom: 5Px;"><li>Piston: Piston compressors come optional with a belt tensioner. This belt tensioner allows you to easily and quickly tighten your belts. These tensioners also have a double bolt tension device that allows you to keep the belts in perfect alignment. No pry bars needed to tighten your belts!</li><li>Rotary: All Rotary Screw belt driven models 5HP – 20HP include an automatic spring-loaded belt tensioning device. This keeps a steady pressure for optimal belt tension</li></ul>Auto Drain<ul Style="Margin-Top:0Px; Padding-Top: 5Px; Padding-Bottom: 5Px;"><li>Operation: A dual timer electric auto drain is a device designed to expel moisture and water from the air receiver tank</li><li>Interval Setting Feature: It has an adjustable interval setting feature that allows you to set the device from 1 to 45-minute drain cycles. You can also set the timing of how long you want the drain to stay open</li><li>Muffler Included: Our premium series compressors Include an air muffler for quiet dispensing of water</li></ul>Belt Drive<ul Style="Margin-Top:0Px; Padding-Top: 5Px; Padding-Bottom: 5Px;"><li>Our belt driven compressors are driven by V belts that allow you to adjust the pump speeds by changing pulley sizes</li></ul>

EMAX Two Stage Duplex Air Compressor, 10 HP, 120 Gallon Capacity, 175 PSI, 3 Phase, 208/230V

two-stage-duplex-air-compressor-10-hp-120-gallon-capacity-175-psi-3-phase-208230v
