Kellogg Compressor

Model # :WBB1654270

MPN #: L001153

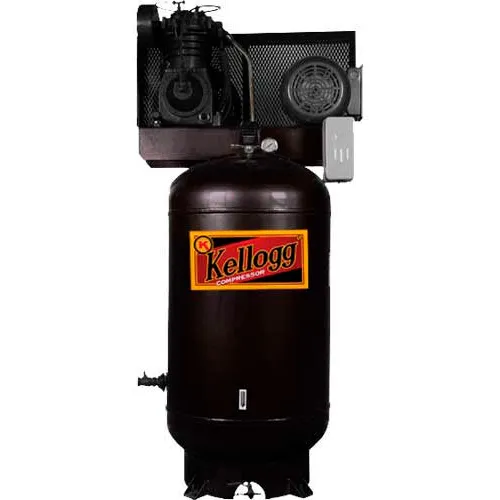

Kellogg-American L001153, 7.5 HP, Two-Stage, 80 Gal, Vert., 175 PSI, 27.5 CFM, 3-Phase, 208-230/460

Product Description
Kellogg-American L001153, 7.5 HP, Two-Stage, 80 Gal, Vert., 175 PSI, 27.5 CFM, 3-Phase, 208-230/460

TEFC (Totally Enclosed, Fan Cooled) Motors. Kellogg American Pumps. IEC Rated Magnetic Starters (Standard). Vertical ASME Certified Tanks. Kellogg Industrial Compressors are engineered and built for rugged use. We use heavy duty, cast iron pumps, premium single phase and three phase motor options, standard 'dual' control, and standard magnetic starters. Every component is specified to provide continuous, industrial duty performance. Our Industrial Compressors are designed for professional use, working in extreme environments, providing all the air needed to get the job done

PRICE
$3,699.00

1
1
Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Weight586 lbs
Tank Size80 gal
Flywheel13.75"
Belt Size2B69 in

Product Details

Assembly RequiredNo
Pump Speed1750 rpm
PumpK335
Max PSI175 psi
MaterialCast Iron
Phase3
CFM @ 175 PSI20.5 CFM
Tank OrientationVertical
Manufacturers Part NumberL001153
Pump TypeLP335
CFM @ 90 PSI22 CFM
BrandKellogg Compressor
Frequency60 Hz
CFM27.5 CFM
Horsepower7.5 HP
Amperage18.2-19/9.1 A
Voltage208-230/460 V
ControlPressure Switch/IECRated Magnetic Starter
Operating Pressure145-175
Full Load Amps19-18.2/9.1 FLA
Number of Cylinders2

Compliance & Certifications

CertificationsASME Certified
