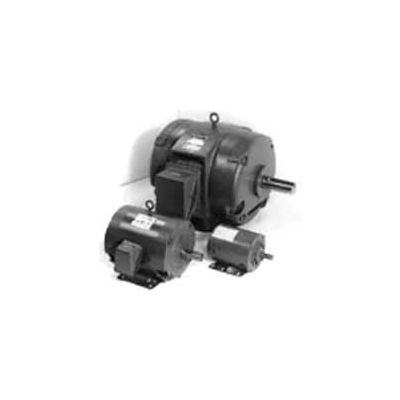

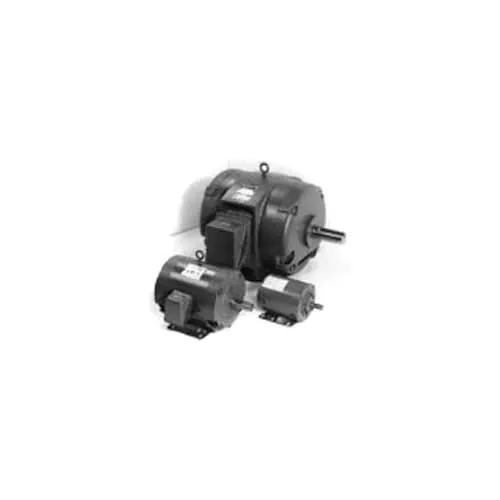

Marathon Motors, U901, 284TSTDP4004, 30HP, 3600RPM, 200V, 3PH, 284TS FR, DP
Marathon's Three Phase extensive line of General Purpose motors are available in ODP and TEFC construction, Foot Mounted and Footless. Horsepower sizes available from stock range from 1/12 HP through 1500 HP.
Marathon's Three Phase extensive line of General Purpose motors are available in ODP and TEFC construction, Foot Mounted and Footless. Horsepower sizes available from stock range from 1/12 HP through 1500 HP.
Product Details
- 60 Hertz kW 22.4 kW
- Mounting Location Rigid
- Assembly Required F1 (F2 Modification Available)
- Bearing Drive End 6311
- Ambient Temperature 40 °C
- Nameplate RPM 3600 rpm
- KVA Code F
- IP Code 12
- Insulation Class B
- RPM Range 3001-3600 rpm
- Bearing Opp Drive End 6210
- Voltage 200 V
- Frame 284TS
- Service Factor 1.15
- Horsepower 30 HP
- Enclosure Type Open/Drip Proof
- Is_Motor Yes
- Duty Continuous
- Phase 3
- Enclosure DP
- Orientation Horizontal
- Starting Type Across The Line
- Full Load Efficiency 91.00 Percent
- Brand Marathon Motors
- Full Load Amps 83 FLA
- Motor RPM 60 Hertz 3600 rpm
- Manufacturers Part Number U901
Compliance & Certifications
- NEMA Design B
- CSA Certified Y
- UL Recognized Construction
- CE Approved Y
Weights & Dimensions
- Drive End Bearing Size 6311
- Opposite End Bearing Size 6210
- Weight 320
