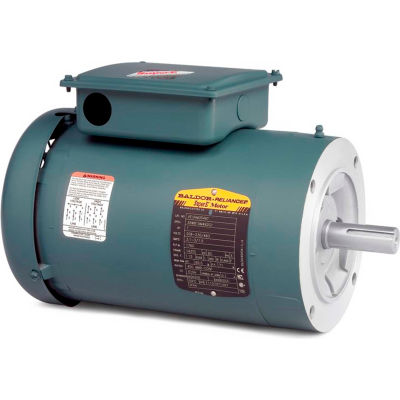

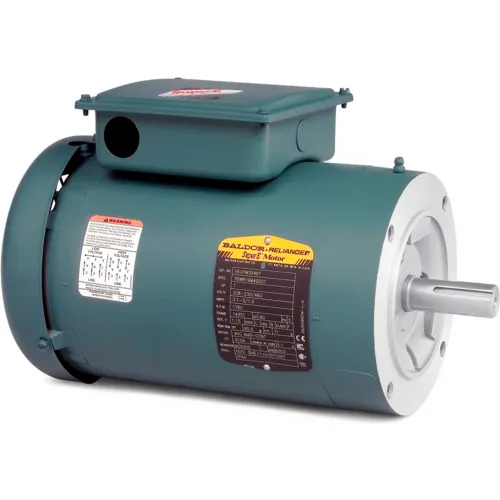

Actual product may differ from image shown
$1,093.00 up to 38% OFF
Price: $681.00
$113.50/mo
suggested payments with 6 month special financing OR Save 5%on Purchase.
Customers Also Viewed
Baldor-Reliance Unit Handling Motor, VEUHM3546, 3 PH, 1 HP, 208-230/460 V, 1760 RPM, TEFC, 56C Frame
Baldor-Reliance's line of Unit handling motors are designed for a wide variety of applications in baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door openers. These motors are available from stock in ratings of ½ HP thru 10HP (56 thru 215T frames) with or without Dodge D-Series brakes. Features include an oversized top mounted conduit box on 56 & 140T frames that provide easy access for making connections. Footed frames include slotted feet for easy mounting.
Features
Baldor-Reliance's line of Unit handling motors are designed for a wide variety of applications in baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door openers. These motors are available from stock in ratings of ½ HP thru 10HP (56 thru 215T frames) with or without Dodge D-Series brakes. Features include an oversized top mounted conduit box on 56 & 140T frames that provide easy access for making connections. Footed frames include slotted feet for easy mounting.
Features
- UL/CSA recognized and CE certified
- CEUHM/VEUHM motors are Super-E® with NEMA Premium® efficiency
- CUHM/VUHM motors are EPAct efficiency and all are inverter-ready
- 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
- 56-140 frames have low profile F3 top-mounted conduit box
- 3 year warranty on Super-E® motors
- Unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.
Weights & Dimensions
- Dimension C 13.23 in
- Opposite End Bearing Size 6203
Product Details
- Power Factor 71
- Bearing Drive End 6205
- RPM 1760 rpm
- Type Unit Handling Motor
- Ambient Temperature 40 °C
- KVA Code L
- Insulation Class F
- RPM Range 1701-1800 rpm
- Voltage 208-230/460 V
- Frame 56C
- Service Factor 1.15
- Horsepower 1 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Duty Continuous
- Phase 3
- Enclosure TEFC
- Amps @ 208V 3.1 A
- Full Load Efficiency 85.5
- Brand Baldor-Reliance
- Full Load Amps 3.1-3/1.5 FLA
- Design Code B
- Motor RPM 60 Hertz 1760 rpm
- Hertz 60 Hz
- Manufacturers Part Number VEUHM3546
Compliance & Certifications
- Specification Number 35X042M492G1
