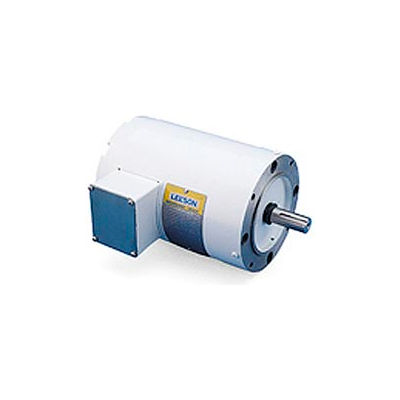

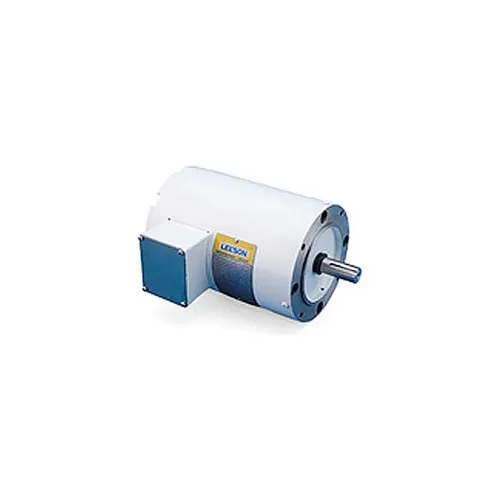

Leeson Motors Motor Washdown Motor-1/2HP, 208-230/460V, 1725/1425RPM, TEFC, ROUND, 1.15 SF, 74 Eff.

Actual product may differ from image shown

Leeson Motors Motor Washdown Motor-1/2HP, 208-230/460V, 1725/1425RPM, TEFC, ROUND, 1.15 SF, 74 Eff.

Item #: WBB228041

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$723.00 up to 26% OFF

Price: $536.00

$89.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Leeson Motors Motor Washdown Motor-1HP, 208-230/460V, 1745RPM, TEFC, RIGID, 1.15 SF, 82.5 Eff.

Leeson Motors Motor Washdown Motor-1HP, 208-230/460V, 1745RPM, TEFC, RIGID, 1.15 SF, 82.5 Eff.

Leeson Motors Motor Washdown Motor-1/2HP, 115/208-230V, 1725RPM, TEFC, RIGID, 1.15 SF, 66 Eff.

Leeson Motors Motor Washdown Motor-1/2HP, 115/208-230V, 1725RPM, TEFC, RIGID, 1.15 SF, 66 Eff.

Baldor-Reliance Motor VEWDM3558T, 2HP, 1725RPM, 3PH, 60HZ, 145TC, 3532M, TEFC, F1

Baldor-Reliance Motor VEWDM3558T, 2HP, 1725RPM, 3PH, 60HZ, 145TC, 3532M, TEFC, F1

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Washguard White Epoxy Coated Motor, 3-Phase: 1/2HP, 1725/1425 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 56 Frame, ROUND, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 2/1&1.8/.9, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 74, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation, Shaft Length: 1-7/8", Shaft Diameter: 5/8".

Enhanced performance in wet, humid areas

  • Durable RUST-OLEUM® white epoxy coating
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Special gaskets, slingers and seals
  • Four endshield drains
  • Moisture-resistant interior components
  • Meets IP55 enclosure protection
  • Suitable for use on VFDs
  • 10:1 ratio for constant or variable torque at 1.0 SF

Weights & Dimensions

  • Shaft Length 1-7/8 in
  • Shaft Diameter 5/8
  • Weight 23 lbs

Product Details

  • Horsepower 1/2 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Duty Continuous
  • Design Sq Cage Inductor Run
  • Enclosure TEFC
  • Phase 3
  • UPC 69172034348
  • Full Load Efficiency 74
  • Brand Leeson
  • Full Load Amps 2/1 FLA
  • Motor RPM 60 Hertz 1725 rpm
  • Thermal Protection No
  • Hertz 60/50 Hz
  • Manufacturers Part Number 116644.00
  • Catalog Number 116644.00
  • Nameplate Amps 2/1&1.8/.9 A
  • Mounting Location C-Face Footless
  • Bearing Drive End 6205
  • RPM 1725 rpm
  • Rotation CCW/CW °
  • Efficiency Type Standard
  • Material Rolled Steel
  • Ambient Temperature 40 °C
  • RPM Range 1701-1800 rpm
  • Voltage 208-230/460 V
  • Frame 56
  • Service Factor 1.15

Compliance & Certifications

  • CSA Certified Y
  • UL Y
