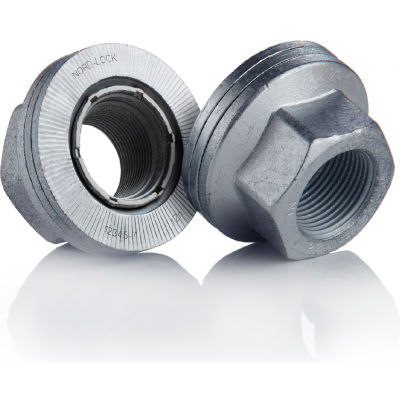

Wedge Locking Wheel Nut - M22 x 1.5 - Carbon Steel - Zinc Flake Coated - Pkg of 20 - Nord-Lock 2638
The Nord-Lock wheel nut safely secures wheels on on-road and off-road heavy vehicles by maintaining high clamping force even under extreme operating conditions. When assembled correctly, the Nord-Lock wheel nut cannot loosen by itself. It represents a simple and cost effective way to make wheels safe and secure for more productive and efficient operations. The Nord-Lock wheel nut is designed for flat-faced steel rims.
The Nord-Lock wheel nut is based on the same principle as the Nord-Lock washers. Each nut incorporates a pair of captivated washers with cam faces on one side, with a cam angle 'alpha' greater than the thread pitch 'beta'. On the opposite side there are radial teeth. When the wheel nut is tightened, the teeth of the Nord-Lock washers grip and lock the mating surfaces, allowing movement only across the cam faces. Any rotation of the wheel nut is blocked by the wedge effect of the cams.
The Nord-Lock wheel nut safely secures wheels on on-road and off-road heavy vehicles by maintaining high clamping force even under extreme operating conditions. When assembled correctly, the Nord-Lock wheel nut cannot loosen by itself. It represents a simple and cost effective way to make wheels safe and secure for more productive and efficient operations. The Nord-Lock wheel nut is designed for flat-faced steel rims.
The Nord-Lock wheel nut is based on the same principle as the Nord-Lock washers. Each nut incorporates a pair of captivated washers with cam faces on one side, with a cam angle 'alpha' greater than the thread pitch 'beta'. On the opposite side there are radial teeth. When the wheel nut is tightened, the teeth of the Nord-Lock washers grip and lock the mating surfaces, allowing movement only across the cam faces. Any rotation of the wheel nut is blocked by the wedge effect of the cams.
Weights & Dimensions
- Unit of Measurement Metric
- Diameter 46mm
- Key Width 32mm
- Fits Bolt Sizes M22
- Inner Diameter 23.4mm
- Height 27 mm
- Thickness 27mm
- Size M22 x 1.5
Product Details
- Description Wedge Locking Wheel Nut
- Country of Origin Import
- Tightening Torque 600-650 Nm
- Surface Coating Basecoat Delta Protekt® KL 100, Topcoat VH 302 GZ
- Corrosion Resistance 600 hours according to ISO 9227
- Package Quantity 20
- Brand Nord-Lock
- Clamp Load 200 kN
- Material Steel
- Finish Zinc
- Lubrication Vax / Grease Paste
- Manufacturers Part Number 2638
- Color Family Gray
- Property Class Grade 10
Photo/Video Gallery
-

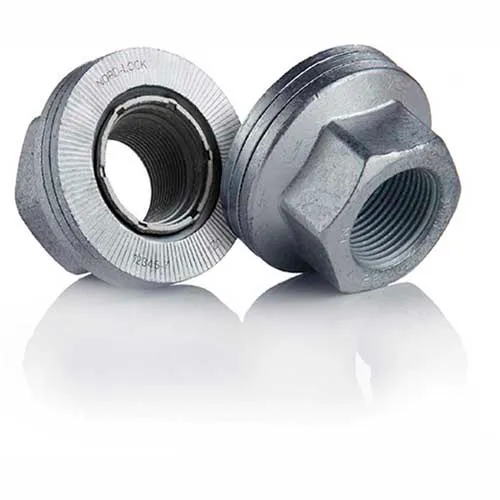

Nord Lock Wheel Nut
-
Customer Review
Product Q & A
There are no questions for this product.

Wedge Locking Wheel Nut - M22 x 1.5 - Carbon Steel - Zinc Flake Coated - Pkg of 20 - Nord-Lock 2638
$178.95
