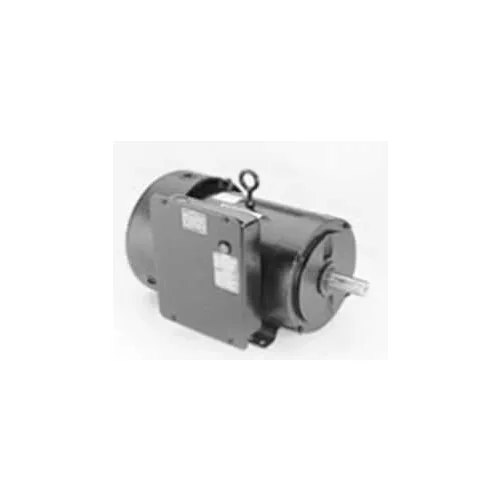

Marathon Motors Z128, 2HP, 115/230V, 1800RPM, 1PH, TEFC, 145T FR

Actual product may differ from image shown

Marathon Motors Z128, 2HP, 115/230V, 1800RPM, 1PH, TEFC, 145T FR

Item #: WBB869797

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $463.95

Save $23.20 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Marathon Motors X1903, 1/4HP, 115V, 1725RPM, 1PH, TENV, 48Z FR

Marathon Motors X1903, 1/4HP, 115V, 1725RPM, 1PH, TENV, 48Z FR

US Motors Farm Duty, 1/2 HP, 1-Phase, 1725 RPM Motor, FD12CM2P

US Motors Farm Duty, 1/2 HP, 1-Phase, 1725 RPM Motor, FD12CM2P

US Motors Farm Duty, 2 HP, 1-Phase, 1725 RPM Motor, FD2CM2PHZ

US Motors Farm Duty, 2 HP, 1-Phase, 1725 RPM Motor, FD2CM2PHZ

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Extech 365510 Stopwatch/Clock, Yellow

Extech 365510 Stopwatch/Clock, Yellow

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

US Motors Pump, 1 HP, 3-Phase, 3450 RPM Motor, EE506

US Motors Pump, 1 HP, 3-Phase, 3450 RPM Motor, EE506

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors Z128, 2HP, 115/230V, 1800RPM, 1PH, TEFC, 145T FR

These motors are designed for many of the varied applications found on the farm. Designs include motors suitable for aeration fans, auger drives, grain stirring, metering pumps, instant reversing, irrigation tower drives, and crop driers.

Weights & Dimensions

  • Opposite End Bearing Size Ball
  • Weight 50
  • Drive End Bearing Size 6205

Product Details

  • Kilowatts 1.49 kW
  • Mounting Location Rigid
  • Bearing Drive End 6205
  • Assembly Required F1 Only
  • RPM 1800 rpm
  • Rotation CCW °
  • Ambient Temperature 40 °C
  • KVA Code J
  • IP Code 43
  • Insulation Class B
  • RPM Range 1701-1800 rpm
  • Voltage 115/230 V
  • Frame 145T
  • Service Factor 1.15
  • Horsepower 2 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Duty Continuous
  • Phase 1
  • Enclosure TEFC
  • Orientation Horizontal
  • Starting Type Cap Start Cap Run
  • Full Load Efficiency 81.5
  • Brand Marathon Motors
  • Full Load Amps 18.8/9.4 FLA
  • Motor RPM 60 Hertz 1800 rpm
  • Thermal Protection Manual Protector
  • Manufacturers Part Number Z128
  • Catalog Number Z128

Compliance & Certifications

  • CE Approved Y
  • NEMA Design L
  • CSA Certified Y
  • UL Recognized Construction
