TPI 294540,24 Inch Beam Mount Fan Non-Oscillating 1/3 HP 4,300 CFM 1 PH TE Motor

Rollover image to zoom in

Click image to enlarge

See all 19 items in product family

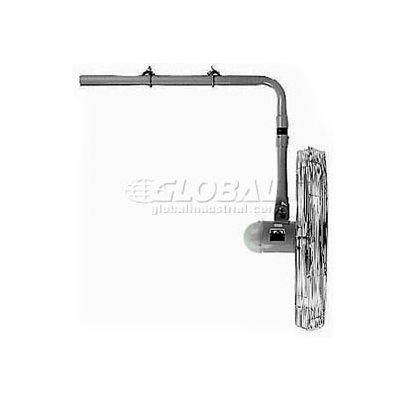

TPI 294540,24 Inch Beam Mount Fan Non-Oscillating 1/3 HP 4,300 CFM 1 PH TE Motor

Item #: WB294540

Sold By: globalindustrial.com

Ships same day. Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

Price: $316.25
Product Information
Photo/Video Gallery
Warranty
Customer Review
Product Q&A
Accessories
AIR CIRCULATOR AND SPECIALTY FANS
Non-Oscillating TPI I-Beam Fans

I-Beam Fans require 1-1/2" or longer pipe nipple for assembly (not included). These quality fans include an enclosed permanently lubricated, PSC-type ball bearing single-phase motor for long life and optimum performance. 3 quiet aluminum blades are enclosed in double locking chrome plated steel wire guards for safety. Pivot-action fan head allows vertical tilt angle adjustments. 2-speed pull chain operation. 12'L SJT type, 3-conductor power cord. 120V. Easy assembly with pre-assembled fan heads and mounts. Meets OSHA standards, UL listed. Horsepower rating based upon maximum speed/load.

Product Specifications

    • BRANDTPI
    • FAN DIAMETER INCHES24
    • WEIGHT LBS50
    • VOLTAGE120
    • PHASE1
    • HORSEPOWER1/3
    • MOTOR TYPETotally Enclosed
    • MOUNT TYPEI-Beam
    • TYPEIndustrial-Assembled
    • APPLICATIONSpot & People Cooling
    • LIMITED WARRANTY YEARS3
    • SPEEDS2
    • POWER CORD TYPESJT 3 Conductor
    • CONSTRUCTIONSteel/Aluminum
    • APPROVALOSHA & UL Listed
    • FAN TYPENon-Oscillating
    • COLOR FINISHGray/Silver
    • BLADE TYPEAluminum
    • CFM HIGH4,300
    • CFM LOW3,900
    • BLADE QUANTITY3
    • MODEL294540
    • VOLTS (LOW TO HIGH)120
    • POWER CORD LENGTH FEET12
    • CFM HIGH RANGE1-10,000
    • ASSEMBLYUnassembled
    • TUBE DIAMETER INCHES1-1/2
