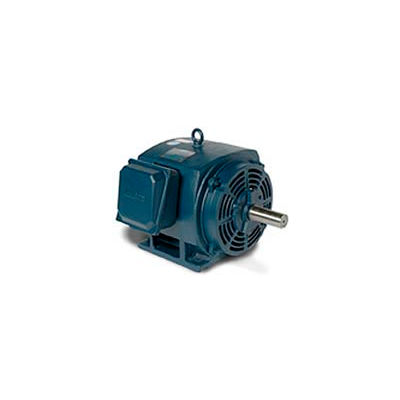

Actual product may differ from image shown

Leeson 140472.00, Premium Eff., 10 HP, 1765 RPM, 208-230/460V, 215T, DP, Rigid
See all 140 items in product family

Leeson 140472.00, Premium Eff., 10 HP, 1765 RPM, 208-230/460V, 215T, DP, Rigid

Item #: WBB222091

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $1,051.00 Save up to 36%
Price: $669.00
Product Information
Customer Review
Product Q&A
General Purpose, 3-Phase Motor: 10/10HP, 1765/1460 RPM, Drip-Proof (DP) Enclosure, 215 Frame, Rigid Mount, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 28.8-26.8/13.4&33.6/16.8, Continuous duty, 1.25 Service Factor, Automatic thermal protection, Efficiency: 91.7, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation, Shaft Length 3, Shaft Diameter 1 3/8.

Drip proof (DP)enclosure has vents in end shield and/or frame to prevent drops of liquid from falling into motor within a 15 degree angle from vertical. Designed for use in areas that are reasonably dry, clean, and well ventilated (usually indoors). If installed outdoors, it is recommended that the motor be protected with a cover that does not restrict the flow of air to the motor.
Rigid base allows motor to be rigidly mounted on equipment.



Documents are in PDF format

Product Specifications

    • HORSEPOWER10
    • ENCLOSUREDP
    • FRAME215T
    • MOUNTINGRigid
    • RPM1765
    • PHASE3
    • MOTOR RPM 60Hz1765
    • VOLTAGE208-230/460
    • HERTZ60/50
    • DUTYContinuous
    • SERVICE FACTOR1.25
    • THERMAL PROTECTIONAutomatic
    • EFFICIENCY TYPEStandard
    • EFFICIENCY91.7
    • AMBIENT TEMP C40
    • SHAFT DIAMETER1-3/8
    • SHAFT LENGTH3
    • ROTATIONREV
    • WEIGHT144
    • ULY
    • CSAY
    • LEESON MODEL NO.C215T17DB15FF
    • UPC69172030706
    • COMPATIBLE WITH/REPLACES - 3GRAINGER, 5N315
    • COMPATIBLE WITH/REPLACES - 1Baldor EM3313T, WEG 01018OT3E215T, Marathon U765
    • BRANDLeeson
    • COMPATIBLE WITH/REPLACES - 2TechTop GR3-RS-OP-215T-4-B-D-10
    • MANUFACTURER PART #140472.00
    • BEARING-DRIVE-END6207
    • DESIGNSq Cage Inductor Run
    • is_motorYes
    • MATERIALRolled Steel
    • FL AMPS28.8-26.8/13.4
