- Trigger actuation with stronger middle finger
- Finger rests on the side of tool do not protrude
- Anatomic design keeps wrist and arm straight, allows high feed forces
- Line of force in line with chuck for better control
- Teasing trigger for good speed control
- Grease zerk adds grease directly to the gears
- 3 Planetary system to reduce gear train length and increase durability
- Tipper valve and valve seat is easily accessible for service
- Slip fit of front end plate bearing allows easy service of the air motor without disturbing the rotor spacing
- Drop in motor. No alilgnment necessary (applies to non-reversing drills only)
- Rotor pinion is case hardened to resist wear
- Grease zerk makes it easy to grease the gears without disassembly
- Planetary reduction can be serviced without removing the chuck
- Planet gear pins are slip fit for ease of assembly and disassembly
- Ring gear is machined into the motor retainer for ease of assembly and disassembly
- Interchangeable rotor, cylinder, bearings and endplates. This reduces the number of spare parts tool cribs need to stock

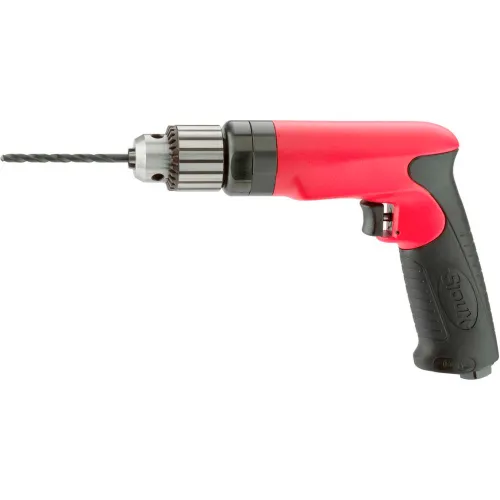

Sioux Tools 1.0 HP Pistol Grip Non Reversible Drill 6000 RPM And 3/8" Chuck
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$489.95
1
1
Free Shipping Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 10 in |
| Width | 7 in |
| Height | 2.5 in |
| Weight | 3 lbs |
| Hose Inside Diameter | 0.375 in |
| Chuck Size | 3/8 in |
Product Details
| Air Inlet Thread Size (NPT) | 1/4" in |
| Average Air Consumption | 30 SCFM |
| Max PSI | 90 psi |
| Side Grip Handle | No |
| Reversible | Yes |
| Made in the USA | YES |
| Manufacturers Part Number | SDR10P60N3 |
| PSI | 90 psi |
| CFM @ 90 PSI | 30 CFM |
| Free Speed | 6000 rpm |
| Exhaust | Handle |
| Brand | Sioux Tools |
| CFM | 30 CFM |
| Horsepower | 1 HP |
| Color | Red & Black |
| Chuck Type | Keyed |
| Tool Type | Pistol Grip Drill |
| Style | Pistol |
| Reserve Capacity | Yes |
| Housing Material | Aluminum |
Warranty
| Warranty | 1 yr |
