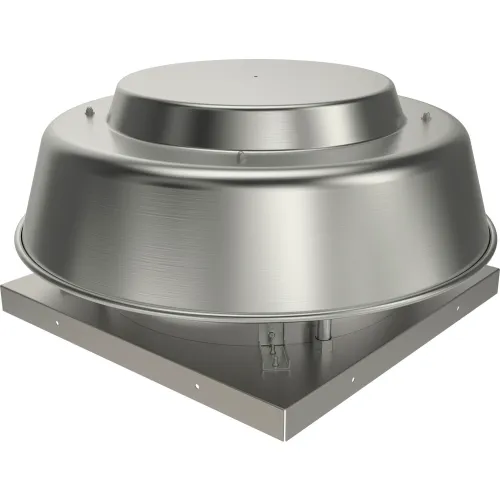

Fantech 10" Direct Drive Axial Roof Vent 5ADE102A, 1/30 HP, 115V, 1 PH, 547 CFM, ODP

Fantech 10" Direct Drive Axial Roof Vent 5ADE102A, 1/30 HP, 115V, 1 PH, 547 CFM, ODP

Item #: WBB2146386

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $427.95

Save $21.40 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Continental Fan RMD-10-11 Axial Exhaust Fan 500 CFM

Continental Fan RMD-10-11 Axial Exhaust Fan 500 CFM

Continental Fan RMD-14-11 Axial Exhaust Fan 1160 CFM

Continental Fan RMD-14-11 Axial Exhaust Fan 1160 CFM

Continental Fan RMD-18-11 Axial Exhaust Fan 2400 CFM

Continental Fan RMD-18-11 Axial Exhaust Fan 2400 CFM

Fantech 12" Direct Drive Axial Roof Vent 5ADE12BA, 1/4 HP, 115V, 1 PH, 1423 CFM, ODP

Fantech 12" Direct Drive Axial Roof Vent 5ADE12BA, 1/4 HP, 115V, 1 PH, 1423 CFM, ODP

Continental Fan RMD-12-11 Axial Exhaust Fan 830 CFM

Continental Fan RMD-12-11 Axial Exhaust Fan 830 CFM

Fantech 16" Direct Drive Axial Roof Vent 5ADE16EA, 3/4 HP, 115V, 1 PH, 2767 CFM, ODP

Fantech 16" Direct Drive Axial Roof Vent 5ADE16EA, 3/4 HP, 115V, 1 PH, 2767 CFM, ODP

Broan 358 Roof Mount Attic Ventilator With Aluminum Dome - 1200 CFM

Broan 358 Roof Mount Attic Ventilator With Aluminum Dome - 1200 CFM

Broan 353 Powered Gable Mount Attic Ventilator - 1020 CFM For Attics Up to 1460 Sq. Ft.

Broan 353 Powered Gable Mount Attic Ventilator - 1020 CFM For Attics Up to 1460 Sq. Ft.

Continental Fan CDD-10-11 Centrifugal Downblast Fan 507 CFM

Continental Fan CDD-10-11 Centrifugal Downblast Fan 507 CFM

Broan 35316 Powered Gable Mount Attic Ventilator - 1600 CFM For Attics Up to 2280 Sq. Ft.

Broan 35316 Powered Gable Mount Attic Ventilator - 1600 CFM For Attics Up to 2280 Sq. Ft.

Fantech 13" Roof Ventilator Direct Drive Upblast 5DDU13DB, 1/2 HP, 115/230V, 1 PH, 2411 CFM, ODP

Fantech 13" Roof Ventilator Direct Drive Upblast 5DDU13DB, 1/2 HP, 115/230V, 1 PH, 2411 CFM, ODP

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Continental Dynamics® Direct Drive 30" Exhaust Fan w/ Shutter, 1 Speed, 8000CFM, 1/4 HP, 1Phase

Continental Dynamics® Direct Drive 30" Exhaust Fan w/ Shutter, 1 Speed, 8000CFM, 1/4 HP, 1Phase

Fantech 10" Direct Drive Axial Roof Vent 5ADE102A, 1/30 HP, 115V, 1 PH, 547 CFM, ODP

Direct-drive axial roof ventilators are designed for use in applications requiring the steady exhaust of air under low to moderate static pressures. All models are manufactured from durable spun aluminum; venturi, inlet and supports are galvanized. Blades are made from stamped aluminum. Ventilators are wall mountable.

Features:
  • All ventilators are UL 705 Standard listed
  • Inlet temperatures up to 140°F
  • Junction box mounted in motor compartment
  • Built-in bird screen to protect discharge and ensure safe operation
  • Externally cooled motor compartment
  • Speed controllable

Weights & Dimensions

  • Width 23-5/8 in
  • Fan Diameter 10 in
  • Length 13-3/8 in
  • Height 13-3/8 in
  • Base Length 19 in
  • Weight 83 lbs

Product Details

  • Mounting Location Roof
  • Number of Speeds Variable
  • For Use With 5ACC03SC
  • Drive Type Direct Drive
  • Material Galvanized Steel
  • Peak Fan Power Input 24.9 BHP
  • Operating Temperature Up To 140°F
  • RPM High 1,759 rpm
  • Voltage 115 V
  • Description Downblast Ventilator
  • Speed Controllable Y
  • Horsepower 1/30 HP
  • Motor Type ODP
  • CFM High 547 CFM
  • Phase 1
  • Watts 24.9 W
  • Brand Fantech
  • Hertz 60 Hz
  • Manufacturers Part Number 5ADE102A
  • Sones 9.3

Warranty

  • Warranty 1 yr

Compliance & Certifications

  • Certifications AMCA Air, AMCA Sound, cULus
