Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black
Free Shipping

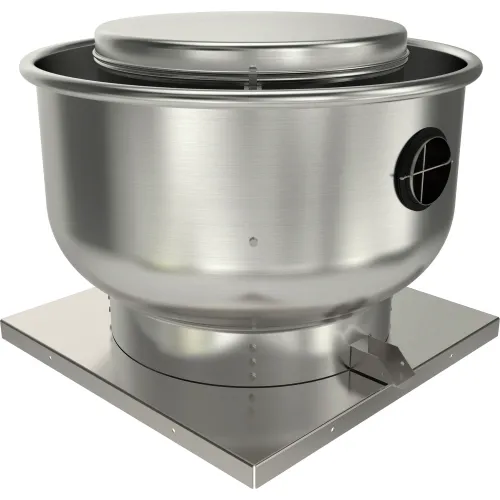

Fantech 10" Roof Ventilator Direct Drive Upblast 5DDU10AA, 1/6 HP, 115V, 1 PH, 1051 CFM, ODP
Direct-drive upblast ventilators are designed for continuous operation to exhaust foul air, smoke, fumes, odors and grease-laden vapors from range hoods and commercial cooking appliances. Ventilators are designed for installation in industrial, institutional and commercial kitchen applications. All models are equipped with a backward inclined aluminum fan wheel and a speed controllable motor.
Features:
Direct-drive upblast ventilators are designed for continuous operation to exhaust foul air, smoke, fumes, odors and grease-laden vapors from range hoods and commercial cooking appliances. Ventilators are designed for installation in industrial, institutional and commercial kitchen applications. All models are equipped with a backward inclined aluminum fan wheel and a speed controllable motor.
Features:
- All ventilators are listed UL 705
- Inlet temperatures up to 170°F
- Backward inclined aluminum fan wheel
- Externally cooled motor compartment
- Fully welded windband
Weights & Dimensions
- Width 23-7/8 in
- Fan Diameter 10 in
- Length 18-7/8 in
- Height 18-7/8 in
- Fan Size 10 in
- Weight 88 lbs
- Base Length 19 in
Product Details
- Number of Speeds Variable
- Mounting Location Roof
- For Use With 5ACC03SC
- Airflow @ 0 Inches Static Pressure 1051 CFM
- Drive Type Direct Drive
- Material Galvanized Steel
- Peak Fan Power Input 186 BHP
- Operating Temperature Up To 170°F
- RPM High 1,725 rpm
- Voltage 115 V
- Description Upblast Ventilator
- Speed Controllable Y
- Horsepower 1/6 HP
- Motor Type ODP
- CFM High 1051 CFM
- Phase 1
- Watts 186 W
- Brand Fantech
- Hertz 60 Hz
- Manufacturers Part Number 5DDU10AA
- Sones 11.6
Warranty
- Warranty 1 yr
Compliance & Certifications
- Certifications AMCA Air, AMCA Sound, UL Standard 705 & 762, Complies with NFPA 96
