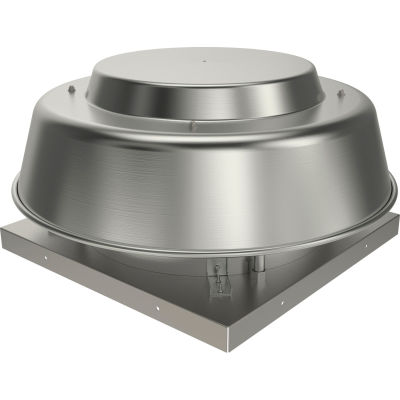

Fantech 12" Direct Drive Axial Roof Vent 5ADE12BA, 1/4 HP, 115V, 1 PH, 1423 CFM, ODP
Direct-drive axial roof ventilators are designed for use in applications requiring the steady exhaust of air under low to moderate static pressures. All models are manufactured from durable spun aluminum; venturi, inlet and supports are galvanized. Blades are made from stamped aluminum. Ventilators are wall mountable.
Features:
Direct-drive axial roof ventilators are designed for use in applications requiring the steady exhaust of air under low to moderate static pressures. All models are manufactured from durable spun aluminum; venturi, inlet and supports are galvanized. Blades are made from stamped aluminum. Ventilators are wall mountable.
Features:
- All ventilators are UL 705 Standard listed
- Inlet temperatures up to 140°F
- Junction box mounted in motor compartment
- Built-in bird screen to protect discharge and ensure safe operation
- Externally cooled motor compartment
- Speed controllable
Weights & Dimensions
- Width 28 in
- Fan Diameter 12 in
- Length 15-1/2 in
- Height 15-1/2 in
- Base Length 22 in
- Weight 61 lbs
Product Details
- Mounting Location Roof
- Number of Speeds Variable
- For Use With 5ACC03SC
- Drive Type Direct Drive
- Material Galvanized Steel
- Peak Fan Power Input 187 BHP
- Operating Temperature Up To 140°F
- RPM High 1,764 rpm
- Voltage 115 V
- Description Downblast Ventilator
- Speed Controllable Y
- Horsepower 1/4 HP
- Motor Type ODP
- CFM High 1422 CFM
- Phase 1
- Watts 187 W
- Brand Fantech
- Hertz 60 Hz
- Manufacturers Part Number 5ADE12BA
- Sones 10.8
Warranty
- Warranty 1 yr
Compliance & Certifications
- Certifications AMCA Air, AMCA Sound, cULus
Customer Review
Product Q & A
There are 1 questions and 1 answer for this product.
-
What are the base dimensions of this fan unit. Thanks
Question Asked By: phil, May 19, 2016
Answer This Question
Question Answered By:
-
Product Expert, May 19, 2016
The base length is 22" the width is 28"
-
