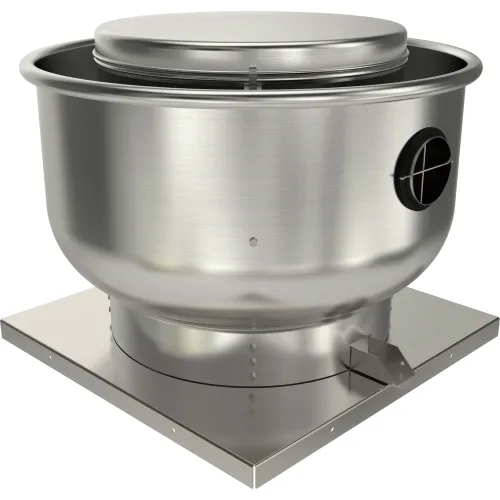

Fantech 13" Roof Ventilator Direct Drive Upblast 5DDU13DB, 1/2 HP, 115/230V, 1 PH, 2411 CFM, ODP
Direct-drive upblast ventilators are designed for continuous operation to exhaust foul air, smoke, fumes, odors and grease-laden vapors from range hoods and commercial cooking appliances. Ventilators are designed for installation in industrial, institutional and commercial kitchen applications. All models are equipped with a backward inclined aluminum fan wheel and a speed controllable motor.
Features:
Direct-drive upblast ventilators are designed for continuous operation to exhaust foul air, smoke, fumes, odors and grease-laden vapors from range hoods and commercial cooking appliances. Ventilators are designed for installation in industrial, institutional and commercial kitchen applications. All models are equipped with a backward inclined aluminum fan wheel and a speed controllable motor.
Features:
- All ventilators are listed UL 705
- Inlet temperatures up to 170°F
- Backward inclined aluminum fan wheel
- Externally cooled motor compartment
- Fully welded windband
Weights & Dimensions
- Width 27-7/8 in
- Fan Diameter 13 in
- Length 20-3/4 in
- Height 20-3/4 in
- Fan Size 13 in
- Base Length 22 in
- Weight 117 lbs
Product Details
- Mounting Location Roof
- Number of Speeds Variable
- For Use With 5ACC03SC, RPE10, RPE210
- Airflow @ 0 Inches Static Pressure 2411 CFM
- Drive Type Direct Drive
- Material Galvanized Steel
- Peak Fan Power Input 476 BHP
- Operating Temperature Up To 170°F
- RPM High 1,690 rpm
- Voltage 115 / 230 V
- Description Upblast Ventilator
- Speed Controllable Y
- Horsepower 1/2 HP
- CFM High 2411 CFM
- Phase 1
- Motor Type ODP
- Watts 476 W
- Brand Fantech
- Hertz 60 Hz
- Manufacturers Part Number 5DDU13DB
- Sones 19.5
Warranty
- Warranty 1 yr
Compliance & Certifications
- Certifications AMCA Air, AMCA Sound, UL Standard 705 & 762, Complies with NFPA 96
