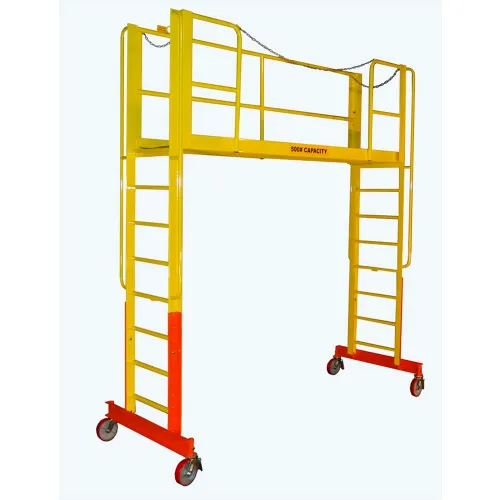

Provides fall protection during routing maintenance and inspection of refrigeration units on small -to - medium size trucks. The platform adjusts in height from 103" - 115" in 4" increments and provides a large, 24"W x 120"L work surface with excellent slip-resistant serrated tread. Ladders are provided on both ends of the platform for dual access. The platform is guarded with 42" guardrails and includes snap chain at entry/exit points and on refrigeration unit access opening. There are designated lifting points for using rope and bucket to bring tools and parts from ground to platform. Reinforced lifting points on each ladder at 4th step to accommodate adjustability when using standard engine puller. Powder coated safety yellow finish with adjustable legs having orange powder coat finish. Rated at 500#, the Refrigerator truck rolling access platform has a base dimension of 130"L x 50"W. Overall height is 145" to 157". Complies with all applicable OSHA and ANSI standards.
Tri-Arc - 130"x50" Refrigerator Truck Maintenance Platform, Serrated - RA10FT-R09
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$4,649.00
1
1
Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 50 in |
| Width | 130 in |
| Height | Adjustable 145-157 in |
| Weight Capacity | 500 lbs |
| Weight | 657 lbs |
| Height to Top Step/Platform | Adjustable 103-115 in |
| Step Width | 24 in |
| Platform Width | 24 in |
| Platform Length | 130 in |
| Step Depth | 1-1/2 in |
Product Details
| Assembly Required | Yes |
| Type | Work Platform |
| Number of Steps | 9 |
| Color | Yellow |
| Step Type | Serrated |
| Material | Steel |
| Description | Refrigerator Truck Maintenance Platform |
| Manufacturers Part Number | RA10FT-R09 |
| Incline | 90 ° |
| Brand | Tri-Arc |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | ANSI & OSHA |
