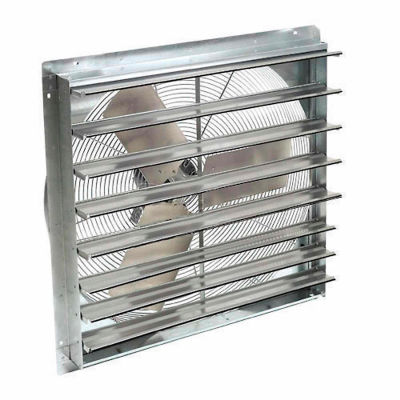

EXHAUST FAN
Guarded exhaust fans feature 120V, single-phase totally permanently lubricated motors with provisions for direct wiring, UL listed. These shutter mounted fans install on inside wall and eliminate the need for external framing and shutter. Quiet operation makes it ideal for commercial environments. Aluminum blades are enclosed in a sturdy steel spiral wire guard. Note: Rough-in hole size is 1/2 inch (+/- 5/16) larger than fan blade size.
1 year limited warranty.
Guarded exhaust fans feature 120V, single-phase totally permanently lubricated motors with provisions for direct wiring, UL listed. These shutter mounted fans install on inside wall and eliminate the need for external framing and shutter. Quiet operation makes it ideal for commercial environments. Aluminum blades are enclosed in a sturdy steel spiral wire guard. Note: Rough-in hole size is 1/2 inch (+/- 5/16) larger than fan blade size.
1 year limited warranty.
Weights & Dimensions
- Rough Opening 14-1/2 in
- Width 17-1/2 in
- Fan Diameter 14 in
- Height 17-1/2 in
- Depth 6-1/2 in
- Weight 17 lbs
Product Details
- RPM Medium 1,550 rpm
- CFM Medium 1400 CFM
- Number of Speeds 3
- Mounting Location Inside Wall
- Assembly Required Unassembled
- Amperage 2 A
- Drive Type Direct
- Material Steel / Aluminum
- CFM Low 1,250 CFM
- RPM High 1,660 rpm
- Voltage 120 V
- Horsepower 1/8 HP
- CFM High 1520 CFM
- RPM Low 1,370 rpm
- Brand TPI
- Decibels 64
- Manufacturers Part Number CE14DS
- Color Family Gray
Warranty
- Warranty 1 yr
⚌
Photo/Video Gallery
-
TPI 14" Exhaust Fan Shutter Mounted CE14-DS 1/8HP 1520CFM
-
![EXHAUST FAN WITH SHUTTER]()
-
![EXHAUST FAN WITH SHUTTER]()
-
![EXHAUST FAN WITH SHUTTER]()
-
![ALUMINUM BLADES GUARDED BY STEEL SPIRAL WIRE GUARD]()
-
![115V 1-PHASE ENCLOSED MOTOR]()
-
![SHUTTER]()
-
![EXHAUST FAN WITH SHUTTER]()
-
![ALUMINUM BLADED GUARDED BY STURDY STEEL SPIRAL WIRE GUARD]()
Customer Review
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: Anonymous
Date: March 23, 2018
-
Reviewer: Anonymous
Date: March 23, 2018
Your review:
Replaced our old exhaust fan with this unit. It works great -
Reviewer: Anonymous
Date: October 14, 2015
Your review:
I purchase two of these. to exhaust heat from a production room -
Reviewer: Anonymous
Date: September 24, 2015
Your review:
I installed this fan for a friend of mine and so far it looks like a good unit. It went in well and seems to work like we needed. -
Reviewer: Anonymous
Date: August 27, 2014
Your review:
Thank you for your service as all is working well, arrived on time, and was just as advertised. -
Reviewer: Anonymous
Date: November 27, 2013
Your review:
Easy to install, does more than I expected and fairly quiet.Shipped promptly and received with no damage. I will use Global again for sure -
Reviewer: Anonymous
Date: July 09, 2012
Your review:
Great Product and exactly what I needed. Bought it to extract excessive heat from my detached garage. Works great and so far only have to run it on low speed, but I sure as the summer goes on I will take it up to high speed (3 speed control). Easy to install although I did have to purchase some extra bolts but no complaints. Thanks -
Reviewer: Anonymous
Date: February 23, 2012
Your review:
unit seams to be a good solid unit,quiet -
Reviewer: Anonymous
Date: October 17, 2011
Your review:
Shipping was done promptly. The fan works great. It would have been even better if Global Industrial listed all mounting dimentions on the internet.*** Global Comment: See the link to view instructions in the Product Information screen. *** -
Reviewer: Anonymous
Date: June 28, 2011
Your review:
Good quality, solid construction, really blows and without a rattle, yet, I've only had it a little while.
Product Q & A
There are 4 questions and 4 answers for this product.
-
Do the shutters close automatically or just open automatically when the fan turns on? The video states that the shutters can be closed, not that they close automatically.
Question Asked By: Charles, April 05, 2016
Answer This Question
Question Answered By:
-
Product Expert, April 05, 2016
That is a manual operation.
-
-
Can this fan be switched remotely? IE a wall switch in the house
Question Asked By: Richard, September 18, 2015
Answer This Question
Question Answered By:
-
Product Expert, September 18, 2015
they open and close as the fan opperates
-
-
Is motor UL rated
Question Asked By: Kevin, September 18, 2015
Answer This Question
Question Answered By:
-
Product Expert, September 18, 2015
It is not UL rated
-
-
What is the depth of the shutter portion of the fan, item #248449?
Question Asked By: May 06, 2014
Answer This Question
Question Answered By:
-
anonymous
2.375" deep
-
Warranty
This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
