Cool Attic® 24" Belt Drive Whole House Fan With Shutter

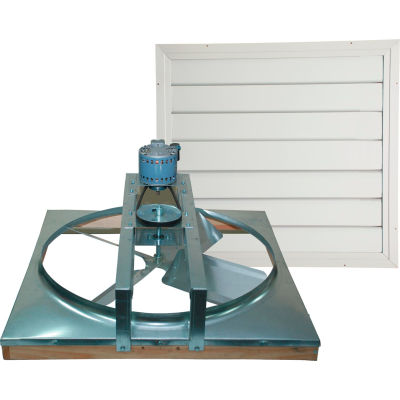

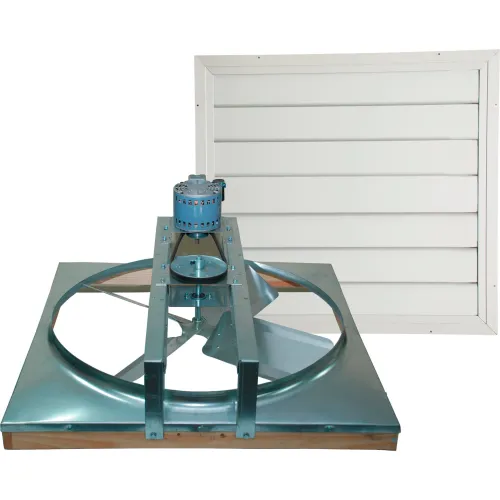

The 24-inch Cool Attic Belt Drive Whole House Fan offers an energy efficient way to trim cooling costs while keeping your entire home more comfortable, and is belt-driven for quieter operation. It is suitable for a home with a 1,200 - 2,000 square foot attic. It allows joist-in or joist-out installation, for ceiling mount application only. Requires 8 square feet of net free air attic exhaust vent area. Rough opening is 26" x 28". It includes a white automatic shutter and a 2-speed switch with wall plate. A 2-speed thermally protected 1/3 HP, 5 amps, 115 volt/60 hertz PSC motor pulls hot air from your home and expels it through your attic exhaust vents. Pre-assembled and ready for installation, it is covered by a 10-year limited warranty.
The 24-inch Cool Attic Belt Drive Whole House Fan offers an energy efficient way to trim cooling costs while keeping your entire home more comfortable, and is belt-driven for quieter operation. It is suitable for a home with a 1,200 - 2,000 square foot attic. It allows joist-in or joist-out installation, for ceiling mount application only. Requires 8 square feet of net free air attic exhaust vent area. Rough opening is 26" x 28". It includes a white automatic shutter and a 2-speed switch with wall plate. A 2-speed thermally protected 1/3 HP, 5 amps, 115 volt/60 hertz PSC motor pulls hot air from your home and expels it through your attic exhaust vents. Pre-assembled and ready for installation, it is covered by a 10-year limited warranty.
Weights & Dimensions
- Width 13 in
- Fan Diameter 24 in
- Diameter 24 in
- Length 29 in
- Height 31 in
- Weight 45 lbs
Product Details
- Voltage 120 V
- Number of Speeds 2
- Horsepower 1/3 HP
- Amperage 5 A
- CFM High 4500 CFM
- Brand Ventamatic
- Material Aluminum
- CFM Low 3,100 CFM
- Hertz 60 Hz
- Manufacturers Part Number CX24BDM-2SPD
Customer Review
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: Anonymous
Date: February 08, 2016
-
Reviewer: Anonymous
Date: August 24, 2013
Your review:
Product itself is very good for the money. However---was told by sales person that the shutter would work in a vertical position. It doesn't. Called to gripe. Rather limited response from "customer service" Had to purchase vertical mount shutter from another source. -
Reviewer: Anonymous
Date: April 19, 2012
Your review:
Honestly- I would have expected this quality from something half the price. �Shutter assembly needs to be a heavier gauge metal, as it is flimsy. �The volume of fan is MUCH louder than what I had read descriptions of online...(no, it is not the same decibels as a microwave oven in use). -
Reviewer: Anonymous
Date: August 18, 2011
Your review:
Had the unit installed a few days after receiving from the freight company. Package was well protected from shipping mishaps, and all arrived well. Installation went well, and everything works fine.
