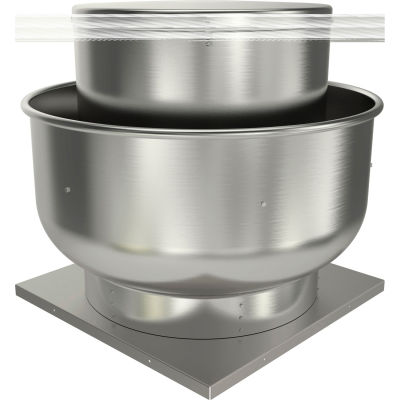

Fantech 24" Roof Ventilator Belt Drive Upblast 5BDU24HX-A, 2 HP, 208/220V, 3 PH, 8018 CFM, ODP

Fantech 24" Roof Ventilator Belt Drive Upblast 5BDU24HX-A, 2 HP, 208/220V, 3 PH, 8018 CFM, ODP

Item #: WBB2146564

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $2,147.00

$357.83/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Continental Fan RMD-18-11 Axial Exhaust Fan 2400 CFM

Continental Fan RMD-18-11 Axial Exhaust Fan 2400 CFM

Broan 353 Powered Gable Mount Attic Ventilator - 1020 CFM For Attics Up to 1460 Sq. Ft.

Broan 353 Powered Gable Mount Attic Ventilator - 1020 CFM For Attics Up to 1460 Sq. Ft.

Fantech 16" Direct Drive Axial Roof Vent 5ADE16EA, 3/4 HP, 115V, 1 PH, 2767 CFM, ODP

Fantech 16" Direct Drive Axial Roof Vent 5ADE16EA, 3/4 HP, 115V, 1 PH, 2767 CFM, ODP

Continental Fan CDD-10-11 Centrifugal Downblast Fan 507 CFM

Continental Fan CDD-10-11 Centrifugal Downblast Fan 507 CFM

Broan 35316 Powered Gable Mount Attic Ventilator - 1600 CFM For Attics Up to 2280 Sq. Ft.

Broan 35316 Powered Gable Mount Attic Ventilator - 1600 CFM For Attics Up to 2280 Sq. Ft.

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Fantech 24" Roof Ventilator Belt Drive Upblast 5BDU24HX-A, 2 HP, 208/220V, 3 PH, 8018 CFM, ODP

Belt-drive upblast ventilators are designed for roof mounted exhaust of commercial and industrial buildings. There models are both for roof and wall application (except 5BDU30 and 5BDU36). Durable spun aluminum construction with steel support braces. Backward inclined aluminum fan wheel. Motor and wheel are easily detachable without removing ventilator from curb. Permanently lubricated ball bearings (5BDU10 - 5BDU13) and regreasable pillow block bearings (5BDU15 - 5BDU24).

Features:
  • All ventilators are listed UL 705 for electrical and UL 762 for restaurantexhaust in USA only
  • Models 5DBU10 - 5BDU24 are suitable for wall application
  • Inlet temperatures up to 300°F
  • Fully welded windband
  • Externally cooled motor compartment
  • AMCA and cULus certified

Weights & Dimensions

  • Width 42-3/8 in
  • Fan Diameter 24 in
  • Length 33 in
  • Base Height 1-1/2 in
  • Height 33 in
  • Base Length 34 in
  • Weight 254 lbs

Product Details

  • Mounting Location Roof
  • For Use With 5ACC01MS/02MS
  • Drive Type Belt Drive
  • Material Galvanized Steel
  • Peak Fan Power Input 0 BHP
  • Operating Temperature Up To 300°F
  • RPM High 900 rpm
  • Voltage 208 / 220 V
  • Description Upblast Ventilator
  • Speed Controllable N
  • Horsepower 2 HP
  • Motor Type ODP
  • CFM High 8018 CFM
  • Phase 3
  • Watts 1,119 W
  • Brand Fantech
  • Hertz 60 Hz
  • Manufacturers Part Number 5BDU24HX-A
  • Sones 22

Warranty

  • Warranty 2 yr

Compliance & Certifications

  • Certifications AMCA Air, AMCA Sound, UL Standard 705 & 762, Complies with NFPA 96
