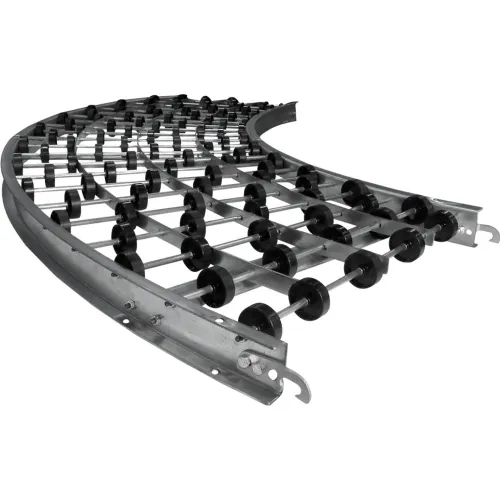

Ashland 24"W 90 Degree Curve Skate Wheel Conveyor, 5'L, Galvanized Steel, 20 WPF

Omni Metalcraft ALUMINUM 90 DEGREE CURVED SECTION SKATE WHEEL CONVEYOR Skate wheel conveyors offer smooth movement of multi-sized material. 2" diameter ball bearing plated wheels and 3" axle centers. 2-1/2" x 1" x 1/8" aluminum channel frame with hook and rod coupling is lightweight for portability and corrosion resistant. Capacity is 50 lbs. per wheel. Need a customized system or solution? Please reach out to your Global Industrial sales representative and they can get you set up with a custom quote for your conveyor needs.

Gravity skatewheel conveyor will convey lightweight loads that have firm flat conveying surfaces such as cartons, totes, cases etc. Benefits and features of skatewheel conveyor include; It is lighter weight than roller conveyor making it ideal for quick temporary set-ups. Includes quick connecting hook and rod couplers. Skatewheels roll freely making them better suited for conveying lighter packages. Aluminum conveyors are lighter in weight for easier handling. Galvanized steel conveyors are heavier and more durable. 1-15/16"Dia., Pre-lubricated aluminum wheels Construction: 1" x 2-1/2" x ...

Gravity skatewheel conveyor will convey lightweight loads that have firm flat conveying surfaces such as cartons, totes, cases etc. Benefits and features of skatewheel conveyor include; It is lighter weight than roller conveyor making it ideal for quick temporary set-ups. Includes quick connecting hook and rod couplers. Skatewheels roll freely making them better suited for conveying lighter packages. Aluminum conveyors are lighter in weight for easier handling. Galvanized steel conveyors are heavier and more durable. 1-15/16"Dia., Pre-lubricated zinc plated steel wheels Construction: 1" x ...

Skatewheel curves are compatible with straight sections, allowing flexibility to conveyor lines. They maintain package orientation due to the differential action of the individual wheels. Zinc-plated steel wheels and galvanized steel frame for corrosion resistance or mill finish aluminum wheels and frame for light weight. Hook and stud couplers for connecting portable sections. 50 lb wheel capacity (steel) or 25 lb wheel capacity (aluminum) Up to 210 lbs per foot load capacity (steel) or 120 lbs per foot (aluminum) 1/4" diameter carbon steel axles, threaded with locknut, spaced on 3" ...

Ashland 90° Curve Aluminum Skatewheel Conveyor - 15" OAW - 10 WPF Gravity skatewheel conveyor will convey lightweight loads that have firm flat conveying surfaces such as cartons, totes, cases etc. Benefits and features of skatewheel conveyor include; It is lighter weight than roller conveyor making it ideal for quick temporary set-ups. Includes quick connecting hook and rod couplers. Skatewheels roll freely making them better suited for conveying lighter packages. Aluminum conveyors are lighter in weight for easier handling. Galvanized steel conveyors are heavier and more durable. ...
