Baldor-Reliance

Model # :WBB909341

MPN #: EM2543T-8

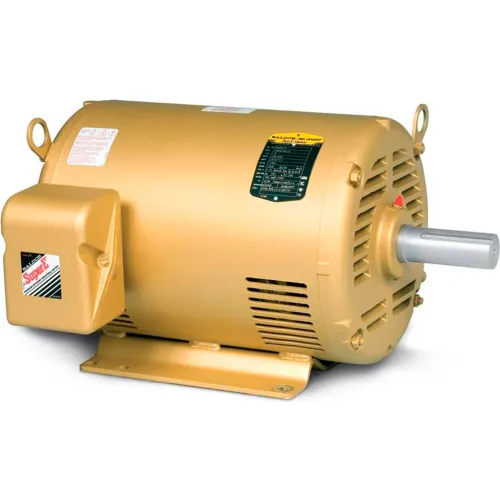

Baldor-Reliance 3-Phase Motor, EM2543T-8, 50 HP, 1775 RPM, 326T Frame, Foot Mount, OPSB, 200 Volts

Product Description
Some general purpose applications require a motor that runs on 200 volt power. These 200 volt motors are stocked from 1 Hp to 50 Hp in TEFC, and 1 Hp to 100 Hp in ODP. Also available is an extensive line of 575 volt motors. The 575 volt motors are available in general purpose TEFC and ODP, Washdown, Severe Duty, IEEE-841, Explosion Proof, and Close-Coupled pump designs, in a variety of mounting configurations.

Features
  • 1.15 Service Factor
  • Positively locked drive end bearing on 254T and larger
  • Ball bearings
  • Dynamically balanced rotors
Application(s)
  • Pumps, fans, compressors, blowers, machine tools, conveyors and many other applications requiring 200 volt power.
PRICE
$6,305.00

1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Dimension C27.69 in

Product Details

Power Factor87
Bearing Opp Drive End6311
KVA CodeG
Motor RPM 60 Hertz1775 rpm
Mounting LocationRigid
Phase3
Manufacturers Part NumberEM2543T-8
EnclosureOPSB
Service Factor1.15
Bearing Drive End6312
BrandBaldor-Reliance
Insulation ClassF
Horsepower50 HP
Frame326T
Hertz60 Hz
Design CodeB
Enclosure TypeOpen/Drip Proof
Voltage200 V
Full Load Efficiency94.5
Nameplate RPM1775 rpm
Full Load Amps132 FLA
DutyContinuous
RPM Range1701-1800 rpm
Ambient Temperature40 °C
