ORS 30208 Tapered Roller Bearing - Metric 40mm Bore, 80mm OD

ORS 30208 Tapered Roller Bearing - Metric 40mm Bore, 80mm OD

Item #: WBB1766282

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Minimum Quantity: 3

Price: $14.00

Save $0.70 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

ORS 32012 Tapered Roller Bearing - Metric 60mm Bore, 95mm OD

ORS 32012 Tapered Roller Bearing - Metric 60mm Bore, 95mm OD

ORS 32005 Tapered Roller Bearing - Metric 25mm Bore, 47mm OD

ORS 32005 Tapered Roller Bearing - Metric 25mm Bore, 47mm OD

ORS 32212 Tapered Roller Bearing - Metric 60mm Bore, 110mm OD

ORS 32212 Tapered Roller Bearing - Metric 60mm Bore, 110mm OD

ORS 30206 Tapered Roller Bearing - Metric 30mm Bore, 62mm OD

ORS 30206 Tapered Roller Bearing - Metric 30mm Bore, 62mm OD

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

ORS 30208 Tapered Roller Bearing - Metric 40mm Bore, 80mm OD

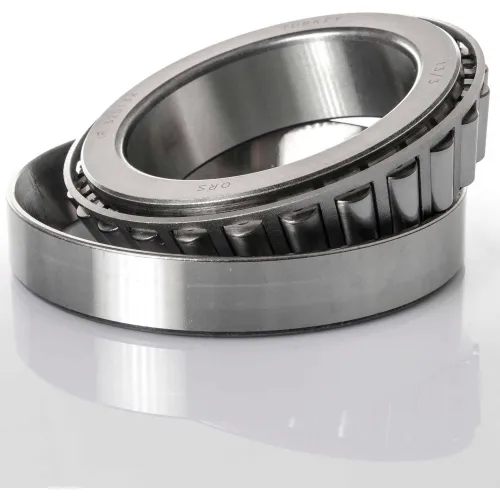

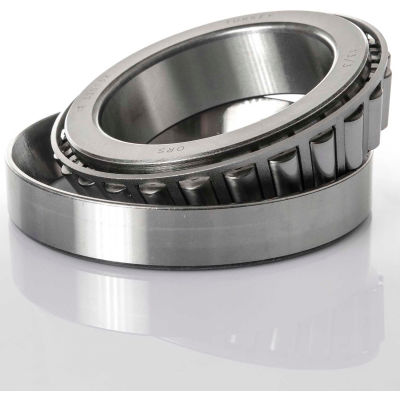

ORS Tapered Roller Bearings - Metric. ORS Tapered Roller Bearings are separable; Cone (inner ring) with roller and cage assembly and Cup (outer ring). These bearings can be assembled separately and supplied as matched Cup and Cone sets. Bearings are made of AISI 52100 grade steel and heat-stabilized to 300°F. Rollers and raceways are optimized to have a line contact which allows the bearing to carry heavy radial and axial loads. Since these bearings can only support axial loads in one direction, a second laterally reversed bearing may be used for the axial load in other direction (either "back-to-back" or "face-to-face" arrangement). Pressed steel cage separates rollers evenly for reduced wear properties and minimal heat generation. These bearings are mainly used in mining, agriculture, construction, automotive axle, gearbox, conveyor systems in heavy duty industries, among others. ORS Bearings Inc. was established in 1982 with the license of Steyr Waelzlager of Austria, and headquartered in Ankara, Turkey with its 1,000,000 square foot production facility. The company has been granted numerous awards and certificates such as ISO 9001:2008, ISO/TS 16949:2009, ISO 14001, ISO/IEC 27001:2005, OHSAS 18001, FORD Q1 and many more.

Weights & Dimensions

  • Tolerance ISO Normal
  • Bore Diameter 40 mm
  • Max Housing Corner Radius 1.5
  • Diameter 80 mm
  • Cup Width 16
  • Static Load 71.16 N
  • Cone Width 18
  • Assembled Width 19.75 in

Product Details

  • Operating Temperature - 20 / + 300°F °F
  • Oil Max Speed 6300 rpm
  • Dynamic Load (kN) 64.8
  • Cage Material Pressed steel
  • Max Shaft Fillet Corner Radius 1.5
  • Brand ORS
  • Bearing Type Tapered Roller
  • Grease Max Speed 4800 rpm
