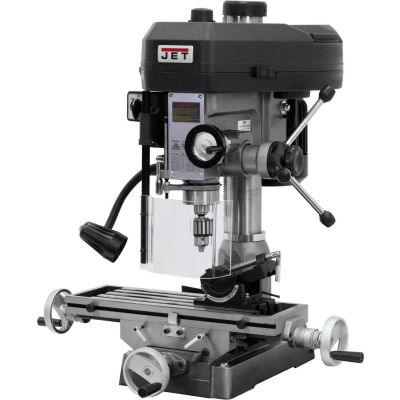

Jet 350017 JMD-15 Milling/Drilling Machine W/R-8 Taper, 1HP, 115/230V, 1-Phase

Mill drills are a lighter alternative to a Milling machine. These combine a belt driven drill press with the dual coordinate abilities of the Milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.

Features:
  • Milling/Drilling Machines
  • One-piece cast iron column for added support
  • Belt cover quick slide latch allows faster belt adjustment to change spindle speeds
  • Base taper allows for easier clean-up
  • Larger hand wheel knobs
  • UL Listed motor
  • Extra large worktable
  • Heavy-duty tapered roller bearings support the spindle, resulting in greater tolerance and more accurate drilling depth
  • New positive quick-stop knob and easy-to-read internal depth gauge (external on JMD-15)
  • 360? head swivel
  • Heavy-duty power downfeed with manual fine feed (JMD-18PFN)
  • Three power down feeds (JMD-18PFN .004, .007, .01)
  • Worklamp
  • Adjustable carbide facemill
  • Drill press angle vise
  • 1/2 drill chuck, chuck arbor
  • Draw bar


Weights & Dimensions

  • Quill Travel 3-1/2 in
  • Table Cross Travel 5-1/2 in
  • Spindle Travel 3-1/2 in
  • Table Longitudinal Travel 14 in
  • Quill Diameter 2-7/16 in
  • Width 37.5 in
  • Face Milling Capacity 2-1/2 in
  • Max Distance Spindle to Table 15 in
  • Dimensions L 37" X W 38" X H 37" in
  • Height 35.5 in
  • Table Size (L x W) 7-1/2 x 23 in
  • Column Diameter 3-5/8 in
  • T-Slots Number And Size 4 & 9/16 in
  • Length 36.5 in
  • Drilling Capacity 1 in
  • Base Dimensions 12-1/2 X 19-3/4 in
  • End Milling Capacity 1/2 in
  • Swing 14-1/2 in
  • T-Slots Centers 1-13/16 in
  • Size 14-1/2
  • Weight 370 lbs
  • Distance Spindle To Column 7-1/4 in

Product Details

  • Motor Voltage 115/230 V
  • Spindle Taper R-8
  • Range of Spindle Speeds 110 - 2,580 rpm
  • Motor Horsepower 1 HP
  • Work Table Weight Capacity 350 lbs
  • Number of Spindle Speeds 12
  • Powerfeed None
  • Motor 1HP, 115/230V,1Ph Prewired 115V
  • DRO None
  • Prewired 115V
  • Phase Single
  • Brand JET
  • Manufacturers Part Number 350017

Warranty

  • Warranty 2-Year Warranty
