Jet 354170 JDP-20MF 20 Floor Drill Press, 115/230V 1-Phase

Jet 354170 JDP-20MF 20 Floor Drill Press, 115/230V 1-Phase

Item #: WBB0230770

(1)

Free Shipping

Price: $1,502.00

$250.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.
We will notify you when this product is back in stock.

Customers Also Viewed

Jet 354400 J-2500 15 Floor Model Drill Press, 115V, 1-Phase

Jet 354400 J-2500 15 Floor Model Drill Press, 115V, 1-Phase

Free Shipping

JET 577102 Model JBG-8A 1HP 1-Phase 115V 8" Industrial Bench Grinder

JET 577102 Model JBG-8A 1HP 1-Phase 115V 8" Industrial Bench Grinder

Free Shipping

Jet 354401 J-2530 15 Bench Model Drill Press, 115V, 1-Phase

Jet 354401 J-2530 15 Bench Model Drill Press, 115V, 1-Phase

Free Shipping

Jet 354550 J-A5816 15 Variable Speed Floor Model Drill Press, 115/230V, 1-Phase

Jet 354550 J-A5816 15 Variable Speed Floor Model Drill Press, 115/230V, 1-Phase

Free Shipping

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

JET 577172 Model JPS-2A Bench Grinder Pedestal Stand W/ 11" x 10" Mounting Surface

JET 577172 Model JPS-2A Bench Grinder Pedestal Stand W/ 11" x 10" Mounting Surface

Wilton 11696 Model CS6 6" Jaw Width 6" Opening 2" Jaw Depth XY Cross Slide Drill Press Vise

Wilton 11696 Model CS6 6" Jaw Width 6" Opening 2" Jaw Depth XY Cross Slide Drill Press Vise

Free Shipping

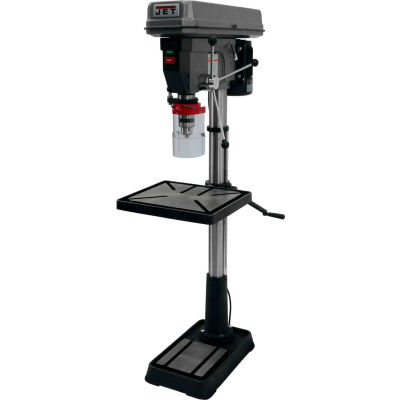

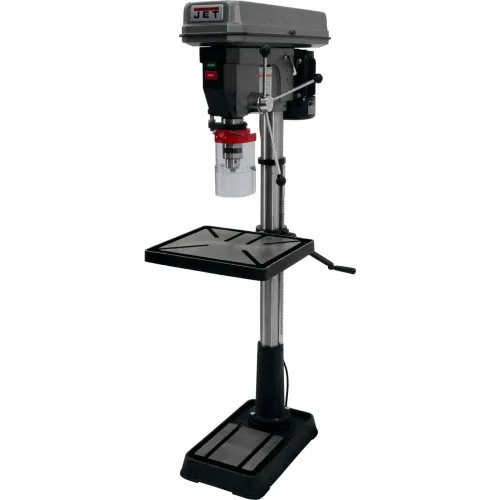

Jet 354170 JDP-20MF 20 Floor Drill Press, 115/230V 1-Phase

Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.

Features:
  • 20 Floor Drill Press
  • Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
  • Rotating, 45° tilting, crank-operated worktable with quick release clamp
  • On/off switch located on front of the drill press head
  • A 1/2 diameter external positive depth stop with three nut locking feature for quick adjustment
  • Adjustable tension spindle return spring
  • Spindle is supported by high quality ball bearings
  • Built-in work lamp on all models, bulb not included
  • Drill chuck and key included


Weights & Dimensions

  • Quill Travel 4-5/8 in
  • Spindle Travel 4-5/8 in
  • Spindle Distance To Table (Max) 29-1/8 in
  • Quill Diameter 2.44 in
  • Base Slots Number & Size 2 X 5/8 in
  • Chuck Size 3/4 in
  • Table Size (L x W) 18-1/2 X 16 in
  • Column Diameter 3-3/8 in
  • T-Slots Number And Size 6 & 1/2 in
  • Base Dimensions 13-5/8 x 22-3/8 in
  • Drills to Center of Circle 20 in
  • Base Work Table 13 X 8-1/2 in
  • T-Slots Centers 3-1/2 in
  • Spindle Distance To Base 46-3/4 in
  • Size 20 in
  • Weight 282 lbs

Product Details

  • Spindle Taper 3 MT
  • Motor Voltage 115/230 V
  • Drilling Capacity Mild Steel 3/4
  • Range of Spindle Speeds 150 - 4,200 rpm
  • Motor Horsepower 1-1/2 HP
  • Style Floor
  • Work Table Weight Capacity 80 lbs
  • Drilling Capacity Cast Iron 1
  • Number of Spindle Speeds 12
  • Motor 1-1/2 HP, 115/230V, 1Ph, Prewired 115V
  • Prewired 115V
  • Phase 1
  • Brand JET
  • Warranty 2-Year Warranty
  • Manufacturers Part Number 354170
