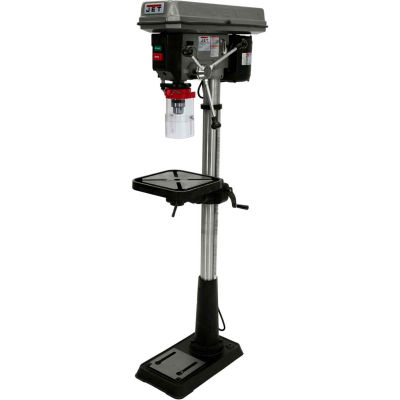

Jet 354400 J-2500 15 Floor Model Drill Press, 115V, 1-Phase
Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.
Features:
Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.
Features:
- Cast iron head
- Large quill allows greater accuracy
- Head casting features a permanently lubricated ball bearing spindle assembly, using four heavy duty ball bearings mounted in an enclosed quill for extended life.
- Table tilts 45°
- Large ground steel column diameter for maximum head and table support
- Hinged metal belt and pulley cover
- Accurate depth stop displays inch/mm and has quick set bolt for fast, accurate adjustments
- 5/8 drill chuck and arbor
Weights & Dimensions
- Quill Travel 3-1/8 in
- Spindle Travel 3-3/8 in
- Spindle Distance To Table (Max) 24 in
- Quill Diameter 1-7/8 in
- Chuck Size 5/8 in
- Table Size (L x W) 11-1/2 X 11-1/2 in
- Column Diameter 2-7/8 in
- Base Dimensions 11 x 19-1/2 in
- Drills to Center of Circle 15 in
- Base Work Table 7 X 7-1/2 in
- Swing 15 in
- Spindle Distance To Base 48 in
- Size 15 in
Product Details
- Spindle Taper 2 MT
- Motor Voltage 115 V
- Drilling Capacity Mild Steel 1/2
- Range of Spindle Speeds 200, 290, 350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2, rpm
- Motor Horsepower 3/4 HP
- Style Floor
- Work Table Weight Capacity 44 lbs
- Drilling Capacity Cast Iron 5/8
- Number of Spindle Speeds 16
- Motor 3/4 HP, 115V, 1 Ph
- Phase 1
- Brand JET
- Warranty 2-Year Warranty
- Manufacturers Part Number 354400
