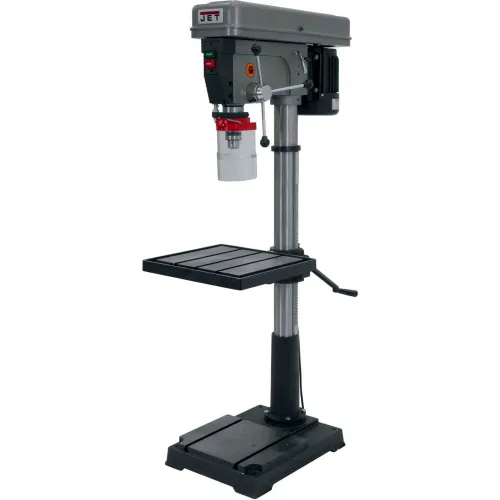

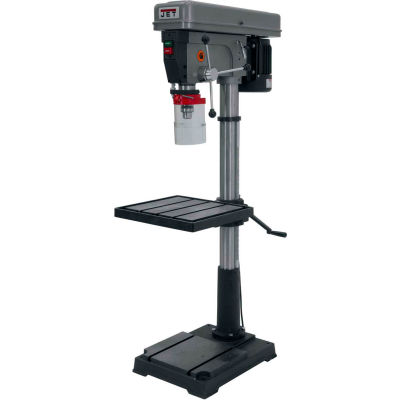

Jet 354402 J-2550 20 Floor Model Drill Press, 115V, 1-Phase

Jet 354402 J-2550 20 Floor Model Drill Press, 115V, 1-Phase

Item #: WBB0230741

Not Yet Rated

Free Shipping

Price: $1,816.00

$302.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.
We will notify you when this product is back in stock.

Customers Also Viewed

Jet 354400 J-2500 15 Floor Model Drill Press, 115V, 1-Phase

Jet 354400 J-2500 15 Floor Model Drill Press, 115V, 1-Phase

Free Shipping

Jet 354550 J-A5816 15 Variable Speed Floor Model Drill Press, 115/230V, 1-Phase

Jet 354550 J-A5816 15 Variable Speed Floor Model Drill Press, 115/230V, 1-Phase

Free Shipping

JET 577102 Model JBG-8A 1HP 1-Phase 115V 8" Industrial Bench Grinder

JET 577102 Model JBG-8A 1HP 1-Phase 115V 8" Industrial Bench Grinder

Free Shipping

Jet 354401 J-2530 15 Bench Model Drill Press, 115V, 1-Phase

Jet 354401 J-2530 15 Bench Model Drill Press, 115V, 1-Phase

Free Shipping

Global Industrial™ Industrial Duty Pallet Jack Truck, 27"W x 48"L Forks, 5500 Lb. Capacity

Global Industrial™ Industrial Duty Pallet Jack Truck, 27"W x 48"L Forks, 5500 Lb. Capacity

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Interion® 4-Way Black Adjustable Shop Stool With Chrome Base

Interion® 4-Way Black Adjustable Shop Stool With Chrome Base

JET 577172 Model JPS-2A Bench Grinder Pedestal Stand W/ 11" x 10" Mounting Surface

JET 577172 Model JPS-2A Bench Grinder Pedestal Stand W/ 11" x 10" Mounting Surface

Delta 20-619 6 In. Quick-Release Drill Press Vise

Delta 20-619 6 In. Quick-Release Drill Press Vise

CGW Abrasives 38516 Bench & Pedestal Grinding Wheel 8" x 1" x 1-1/4" 60 Grit Silicon Carbide

CGW Abrasives 38516 Bench & Pedestal Grinding Wheel 8" x 1" x 1-1/4" 60 Grit Silicon Carbide

Jet 354402 J-2550 20 Floor Model Drill Press, 115V, 1-Phase

Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.

Features:
  • Cast iron head
  • Large quill allows greater accuracy
  • Head casting features a permanently lubricated ball bearing spindle assembly, using four heavy duty ball bearings in an enclosed quill for longer life.
  • Massive T-slotted production work table (Model J-2550 only)
  • Table tilts 45°
  • Large ground steel column diameter for maximum head and table support
  • 3-3/8 stroke for deep hole applications
  • 5/8 drill chuck and arbor
  • Accurate depth stop for precise hole depths


Weights & Dimensions

  • Quill Travel 4-3/4 in
  • Spindle Travel 4-3/4 in
  • Spindle Distance To Table (Max) 24 in
  • Quill Diameter 2-1/4 in
  • Chuck Size 5/8 in
  • Table Size (L x W) 18-1/2 X 16-1/2 in
  • Column Diameter 3-5/8 in
  • T-Slots Number And Size 3 & 1/2 in
  • Base Dimensions 22-3/4 x 17-3/4 in
  • Drills to Center of Circle 20 in
  • Base Work Table 13 X 14-1/2 in
  • Spindle Distance To Base 43-1/2 in
  • Size 20 in
  • Distance Spindle To Column 10 in

Product Details

  • Spindle Taper 3 MT
  • Motor Voltage 115 V
  • Drilling Capacity Mild Steel 5/8
  • Range of Spindle Speeds 150, 260, 300, 440, 490, 540, 1,150, 1,550, 1,840, 2,220, 2,950, 4,200 rpm
  • Motor Horsepower 1 HP
  • Style Floor
  • Work Table Weight Capacity 66 lbs
  • Drilling Capacity Cast Iron 3/4
  • Number of Spindle Speeds 12
  • Motor 1 HP, 115/230V, 1 Ph, Prewired 115V
  • Phase 1
  • Brand JET
  • Warranty 2-Year Warranty
  • Manufacturers Part Number 354402
Customer Review

Not Yet Reviewed

Product Q & A

There are no questions for this product.

Replacement Parts
JET® Nut 2550, M10, 5513740

$4.39

JET® 2500 Adjustment Lock Nut, 5513742

$5.50

JET® Hhcs M8 X 16Mm, 5627141

$66.95

JET® Location Pin Item #14, 5627831

$6.90

JET® Tilting Scale, 5627851

$14.25

JET® Rack (2550 Dp ) , 5627871

$56.95

JET® Lock, Motor Bar, 5627931

$5.60

JET® Scale Locking Wedge, 5627981

$4.85

JET® (3Pc) Handle Bar And Grip, 5629021

$43.95

JET® Quill Assy Item #56A, 5629121

$392.95

JET® Spindle Mt 3, 5629141

$171.95

JET® Thrust Brg 2906, 5629161

$414.95

JET® Lock, 5629211

JET® Lock, 5629211

Item #: B3059463

Not Yet Rated

Free Shipping

$50.95

JET® Retaining Ring, 5629241

$5.40

JET® Pulley Lock Nut, 5629251

$9.60

JET® Motor Pulley Item #79, 5629311

$73.95

JET® J-2550 Collar, 5629231

$5.70

JET® Key Item #80, 5629321

$5.50

JET® Switch Cover Item #88, 5629361

$35.95

JET® Center Pulley Item #95, 5629391

$65.95

JET® Pulley Shaft, 5629411

$31.95

JET® Chuck Key, 5629441

$28.95

JET® Roll Pin 2.5 X 10 M/M, 5629511

$5.60

JET® Bearing 6004Z, 5635271

$51.95

JET® 2500/2530/2550 Washer, 5513743

$6.20

JET® 2500/2530/2550 Nut, 5513746

$6.20

JET® Drive Screw 2.3M X 5 Lg, 5626551

$4.60

JET® Hex Set Screw M6X1-10, 5626251

$5.60

JET® Drill Drift Mt3, 5624671

$14.75

JET® Pinion Gear, 5625071

$15.25

JET® Gear Shaft, 5625081

$5.60

JET® Worm Pinion, 5625091

$19.75

JET® Centering Scale, 5625181

$5.40

JET® Drive Screw 2.3X5 M/M Lg, 5625191

$5.40

JET® Table Lock (12M/M) , 5625211

$15.75

JET® Rp_Use 5624221, 5629031

$46.95
