Achieve higher pressurization with two-stage construction. Cast iron features and stainless steel valves help the compressor operate safely with minimal maintenance, extending its lifetime. Made in the USA. 2 Year Warranty. 27.2" L x 22.9" W x 69.7" H.

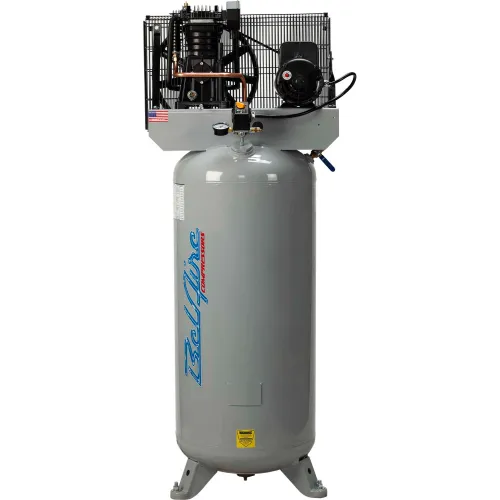

BelAire 4916V Two-Stage Air Compressor, 5HP, 60 Gallon, Vertical, 230V, Single Phase
Write a Review
|
Questions & Answers (0)
Product Description
Get the job done without giving up your workspace with this vertical reciprocating air compressor. The 60-gallon tank, equipped with 165 PSI, delivers maximum pressure to power multiple tools for extended periods of time. This stationary compressor is ideal for mounting in the corner, giving you more room to maneuver around and complete virtually any task in your garage.
15.4 CFM @ 100 PSI; 14.7 CFM @ 165 PSI
230 volt single phase
No magnetic starter required
40 Amp breaker recommended
100% factory tested and ASME certified
Achieve higher pressurization with two-stage construction. Cast iron features and stainless steel valves help the compressor operate safely with minimal maintenance, extending its lifetime. Made in the USA. 2 Year Warranty. 27.2" L x 22.9" W x 69.7" H.
Achieve higher pressurization with two-stage construction. Cast iron features and stainless steel valves help the compressor operate safely with minimal maintenance, extending its lifetime. Made in the USA. 2 Year Warranty. 27.2" L x 22.9" W x 69.7" H.
PRICE
$1,755.00
1
1
Free Shipping Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 27 in |
| Width | 23 in |
| Height | 70 in |
| Weight | 261 lbs |
| Tank Size | 60 gal |
| Tank Outlet | 1/2" |
Product Details
| Oil Type | 30W Non Detergent |
| Oil System | Splash Lubricated |
| Pump Drive | Belt |
| Pump Material | Cast Iron Cylinder |
| Tank Drain Valve | Yes |
| Max PSI | 165 psi |
| Start Type | Electric |
| Material | Cast Iron Cylinder |
| Phase | 1 |
| Tank Orientation | Vertical |
| Oil Sight Glass | Yes |
| Manufacturers Part Number | 8090303119 |
| PSI | 165 psi |
| Pump Type | Two Stage |
| Low Oil Shutoff | No |
| Brand | BelAire |
| CFM | 16.1 CFM |
| Horsepower | 5 HP |
| After Cooler | No |
| Style | Vertical |
| Voltage | 230 V |
| Air Filter | Yes |
| Pre Filter | No |
| Pressure Dew Point | No |
Warranty
| Warranty | 2 yr |
Compliance & Certifications
| Certifications | ASME |
