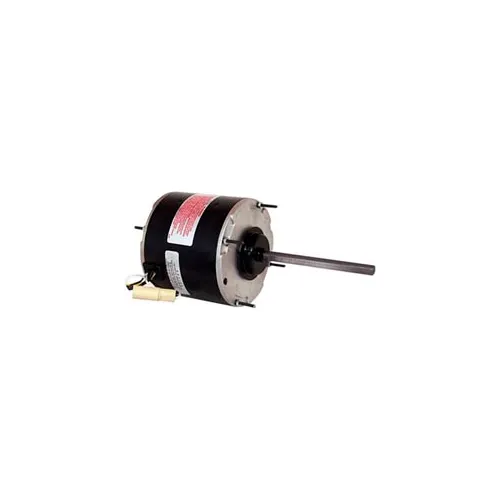

Century FSE1016, 5-5/8" Enclosed Outdoor Sleeve Fan Motor 208-230 Volts 1075 RPM 1/6 HP

Century 5-5/8" Masterfit™ Outdoor Condenser Motor - 208-230V 1075 RPM Energy efficient Different capacitor / Speed combinations Designed for 370V capacitor (not furnished) Extended thru bolts Class B insulation Continuous duty, air over Mounts by belly band, thru bolts or shell holes Rheem mounting holes in shell Permanent Split Capacitor Ball Bearings 48 Frame 60 HZ Automatic Overload Totally Enclosed Single Phase 60ºC ambient

Century 5-5/8"; Outdoor Condenser Motor - 208-230V 1075 RPM Energy efficient Different capacitor / Speed combinations Designed for 370V capacitor (not furnished) Extended thru bolts Class F insulation Continuous duty, air over Mounts by belly band, thru bolts or shell holes Permanent Split Capacitor Ball Bearings 48 Frame 60 HZ Automatic Overload Totally Enclosed Single Phase 70ºC ambient

Century 6-1/2" Condenser Fan Motor - 460/200-230 Volts 1140 RPM Automatic Overload Class B moisture resistant Insulation 1.0 Service Factor 5/8 inch diameter shaft with both keyway and flat 60º C ambient Single Speed Reversible Rotation Double Sealed Ball Bearings Three Phase 56 Frame 60 HZ

Energy efficient Different capacitor / Speed combinations Designed for 370V capacitor (not furnished) Extended thru bolts Class B insulation Continuous duty, air over Mounts by belly band, thru bolts or shell holes Rheem mounting holes in shell Permanent Split Capacitor Ball Bearings 48 Frame 60 HZ Automatic Overload Totally Enclosed Single Phase 60ºC ambient

Century 5 5/8" HeatMaster Motor - 460 Volts 1075 RPM 70ºC (158ºF) max ambient UL/CSA approved Class F insulation High-temperature UL/CSA approved overload protector 3-Year Limited Warranty from date of manufacture date code, or 2 years from the date of installation Energy-efficient PSC design Water-resistant reversing plug Double sealed ball bearing, or dependable all-angle sleeve bearings All-angle mount Mounts by belly band, adjustable extended thru-bolts, or Rheem mounting holes, with screws supplied Lead length 36 60 HZ 48 Frame Totally Enclosed Single Speed Continuous duty, air over ...
