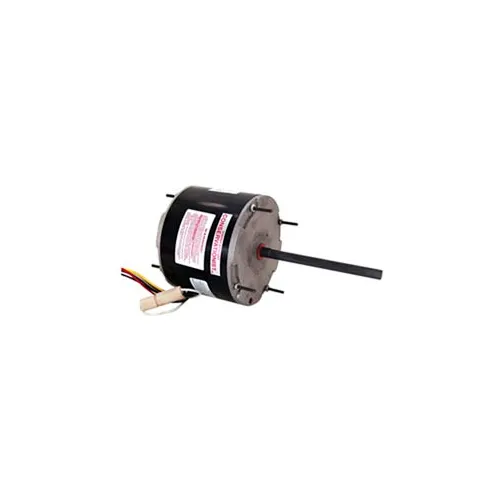

Century FSE6000, 5-5/8" Masterfit Multihorsepower Replacement Motor 208-230 Volts Sleeve

Century 5 5/8" Split Capacitor Condenser Fan Motor - 208-230 Volts 1075 RPM Permanent Split Capacitor 48Y Frame Stud / Belly Band Mounting Automatic Overload 60 HZ Single Phase

This Outdoor Fan Motor features a Sleeve Bearing design.

Century 5 5/8" HeatMaster Canopy Motor - 200-230/460 Volts 1140 RPM 70ºC (158ºF) max ambient UL/CSA approved Class F insulation 3-Year Limited Warranty from date of manufacture date code, or 2 years from the date of installation Energy-efficient PSC and three phase design Patented fan canopy Vertical shaft up only Open, air over Double sealed ball bearing Reversible 60 HZ only Totally Enclosed Single Speed 48 Frame UL and CSA recognized

This Outdoor Fan Motor features a Sleeve Bearing design.

Century 5 5/8" HeatMaster Motor - 460 Volts 1075 RPM 70ºC (158ºF) max ambient UL/CSA approved Class F insulation High-temperature UL/CSA approved overload protector 3-Year Limited Warranty from date of manufacture date code, or 2 years from the date of installation Energy-efficient PSC design Water-resistant reversing plug Double sealed ball bearing, or dependable all-angle sleeve bearings All-angle mount Mounts by belly band, adjustable extended thru-bolts, or Rheem mounting holes, with screws supplied Lead length 36 60 HZ 48 Frame Totally Enclosed Single Speed Continuous duty, air over ...
