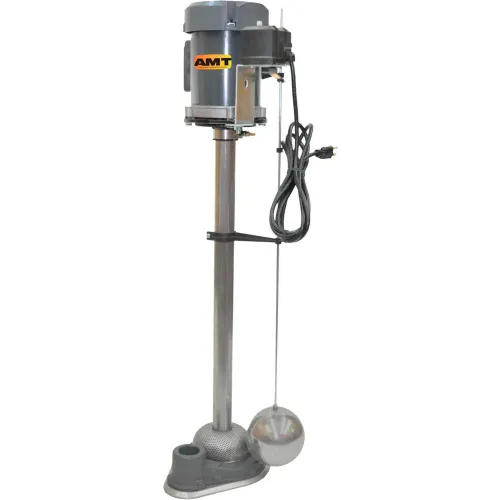

AMT 523C-98 1-1/2" NPT x 29" Indst./Residential Sump Pump, 30ft Disc. Hght, Max 103gpm, 115v 9/5 Amp
The AMT line of Industrial/Commercial Sump Pump is designed for heavy duty commercial applications, as well as residential use where a combination of durability and high performance is required. AMT Sump Pump in cast iron construction with 1/2 HP TEFC (Totally Enclosed, Fan Cooled), 1 Phase, 115 VAC/60 Hz, 9/5 Full Load Amps Motor for most applications. Motor is fitted with automatic switch and an 8 foot 16/3 115 VAC line cord. All models include stainless steel shaft, screen and float. Pumps require a minimum sump pit of 14" diameter and 24" depth.
Features:
The AMT line of Industrial/Commercial Sump Pump is designed for heavy duty commercial applications, as well as residential use where a combination of durability and high performance is required. AMT Sump Pump in cast iron construction with 1/2 HP TEFC (Totally Enclosed, Fan Cooled), 1 Phase, 115 VAC/60 Hz, 9/5 Full Load Amps Motor for most applications. Motor is fitted with automatic switch and an 8 foot 16/3 115 VAC line cord. All models include stainless steel shaft, screen and float. Pumps require a minimum sump pit of 14" diameter and 24" depth.
Features:
- Stainless steel construction with stainless steel impeller
- Stainless steel screen and float
- Carbon bearings
- Semi-open, clog resistant impeller
- Totally Enclosed Fan Cooled (TEFC) motor
- Maximum temperature: 200 F
Weights & Dimensions
- Width 11 in
- Discharge Connection Size 1.5 in
- Max Diameter Solids 0.75 in
- Length 11 in
- Suction/Draw Head 25 ft
- Height 29 in
- Weight 39 lbs
Product Details
- Voltage 115 V
- Discharge Connection Type FNPT
- Horsepower Fractional HP / < 0.7 kW HP
- Amperage 9/5 A
- Phase 1
- Gallons per Minute 103 gal/min
- Brand AMT
- Material Stainless Steel
- Manufacturers Part Number 523C-98
Warranty
- Warranty 1 yr
