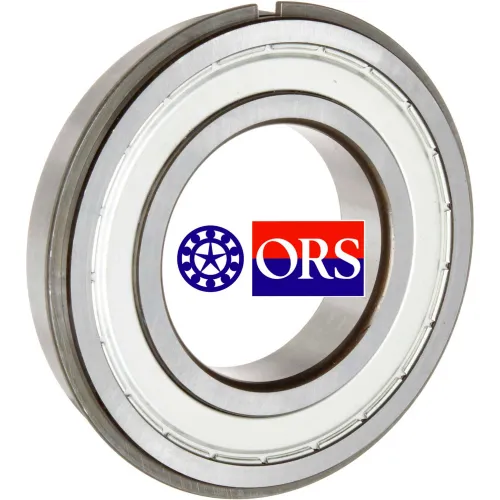

ORS 6014ZZNR Deep Groove Ball Bearing - Double Shielded Snap Ring 70mm Bore, 110mm OD
ORS Deep Groove Ball Bearings. Deep Grove Ball Bearings, often called Radial Ball Bearings, accommodate radial and axial loads, and are capable of operating at higher speeds. Due to these capabilities, they are the most widely used type of bearing. ORS Deep Groove Ball Bearings are made of AISI 52100 grade steel heat-stabilized to 300°F, in ABEC 1 tolerance (ISO Normal) and with C3 radial clearance. All of ORS bearings are 100% noise tested and produced to EMQ. Forgings and heat treatment are done in house. ORS is offering Double Sealed and Double Shielded bearings with Snap Ring for most sizes. ORS Bearings Inc. was established in 1982 with the license of Steyr Waelzlager of Austria, and headquartered in Ankara, Turkey with its 1,000,000 square foot production facility. The company has been granted numerous awards and certificates such as ISO 9001:2008, ISO/TS 16949:2009, ISO 14001, ISO/IEC 27001:2005, OHSAS 18001, FORD Q1 and many more. ORS bearings are commonly used in electric motors, appliances, fans, pumps, machine tool, agriculture, clutches, conveyors, food processing, textile and many other equipment and machinery.
ORS Deep Groove Ball Bearings. Deep Grove Ball Bearings, often called Radial Ball Bearings, accommodate radial and axial loads, and are capable of operating at higher speeds. Due to these capabilities, they are the most widely used type of bearing. ORS Deep Groove Ball Bearings are made of AISI 52100 grade steel heat-stabilized to 300°F, in ABEC 1 tolerance (ISO Normal) and with C3 radial clearance. All of ORS bearings are 100% noise tested and produced to EMQ. Forgings and heat treatment are done in house. ORS is offering Double Sealed and Double Shielded bearings with Snap Ring for most sizes. ORS Bearings Inc. was established in 1982 with the license of Steyr Waelzlager of Austria, and headquartered in Ankara, Turkey with its 1,000,000 square foot production facility. The company has been granted numerous awards and certificates such as ISO 9001:2008, ISO/TS 16949:2009, ISO 14001, ISO/IEC 27001:2005, OHSAS 18001, FORD Q1 and many more. ORS bearings are commonly used in electric motors, appliances, fans, pumps, machine tool, agriculture, clutches, conveyors, food processing, textile and many other equipment and machinery.
Weights & Dimensions
- Tolerance ISO Normal
- Bore Diameter 70 mm
- Width 20 mm
- Max Housing Corner Radius 1.1
- Max Housing Corner Radius, Snap Ring side 0.5
- Diameter 110 mm
- Static Load 30.87 N
- Max Mounted Snap Ring OD 116.6
Product Details
- Operating Temperature - 20 / + 300°F °F
- Dynamic Load (kN) 38.05
- Cage Material Pressed steel
- Prepacked Grease Polyrex EM
- Internal Radial Clearance C3
- Max Shaft Fillet Corner Radius 1.1
- Brand ORS
- Bearing Type Double Shielded, Snap Ring
- Manufacturers Part Number 6014ZZNR
- Grease Max Speed 5700 rpm
Customer Review
Product Q & A
There are no questions for this product.
ORS 6014ZZNR Deep Groove Ball Bearing - Double Shielded Snap Ring 70mm Bore, 110mm OD
$34.95
