GN 738 magnetic plugs attract iron particles which might be suspended in the liquid. The magnetic pin is of a length which makes it impossible to demagnetize itself. To avoid breakage or de-magnetizing, round rod magnets are fitted with a plastic protection tube. This tube has to be removed prior to installing the plug.The seal is retained in a radial undercut in the mating face, which prevents it from dropping out and from extruding when the plug is tightened. For this reason the seal can be of a softer material which offers better sealing. NBR seal: maximum heat resistance: 120°C (250°F).

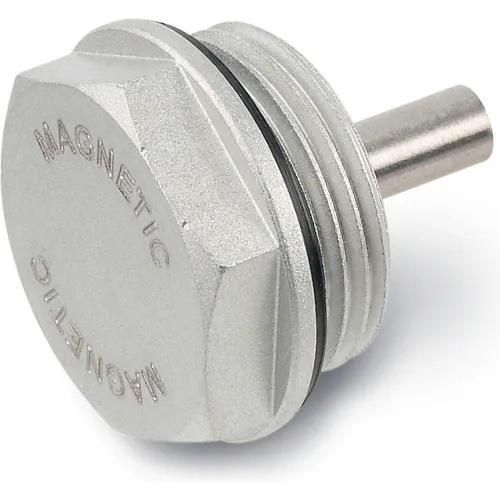

J.W. Winco 738-26-G1/2 Aluminum Magnetic Threaded Plug w/ NBR Seal - G 1/2" Pipe Thread
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$26.95
1
1
Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 1.22 in |
| Pin Length | .60 in |
| Pin Diameter | .24" |
| Thread Size | G 1/2 in |
| Across Flats | .83" (21mm) |
| Thread Length | .33 in |
| Diameter | 1.02 in |
Product Details
| Body Material | Aluminum, Turned |
| Series | GN738 |
| Country of Origin | Import |
| Seal Material | NBR Synthetic Rubber |
| Manufacturers Part Number | 738-26-G1/2 |
| Brand | J.W. Winco |
