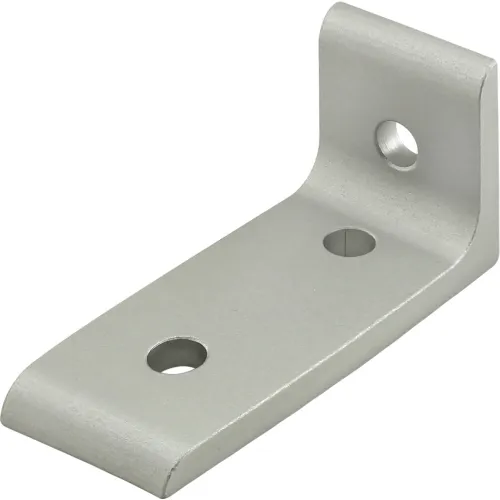

80/20® 15 Series 3 Hole Inside Corner Bracket

The 2 hole - 28mm slotted inside corner bracket with dual support is an external, die-cast fastening method that creates a 90 degree connection. The dual support provides additional strength while the slotted mounting holes allow for greater adjustability between the connecting profiles. Brackets with a slot tab on the support help to line up the profile with the bracket and prevent rotation. This fastener requires no machining services and can provide infinite positioning along the profile T-slot. The suggested mounting hardware can be found on the "Suggested Hardware" tab.

The 8 hole - gusseted inside corner bracket is a strong, external fastening method that creates a 90 degree connection. It has four holes, comprised of two rows and two columns, on each side of the bracket. It requires no machining services and can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. The shape of the gusset provides extra material, strengthening the connection. It is a fastening method that can be repositioned and reused.

The WF-LARGE is a metal bracket used to secure six-inch casters on Flexpipe structures. Mostly used to attach W-6PSB and W-6PF casters, it is installed as a pair with two M8-45B and two M8-N nuts. However, you can use this bracket to reinforce two parallel pipes as an alternative to the HJ-13. It would be a good choice for pipes that need to be spaced further apart, as you can cover an area of 5 inches.

The 3 way - rounded corner bracket is a die-cast external fastening method that is typically used to create an outside corner connection between three profiles. It offers stability and can also be reused and repositioned. The simplicity of this bracket makes it easy to connect multiple profiles. The 3 way - rounded corner bracket requires an end tap machining service on each of the connecting profiles. The suggested hardware can be found on the "Suggested Hardware" tab.

The WF-LOW is a metal bracket used to secure plate casters in conjunction with the WF-UP on Flexpipe structures, such as the W-4PSB and W-4PF. WF-UP and the WF-LOW are installed with two M8-35B bolts and two M8-N nuts. You can use this bracket to stabilize two pipes as an alternative to the HJ-13. Since the brackets are longer than the HJ-13, this could be a good option. This accessory is not for six-inch casters.
