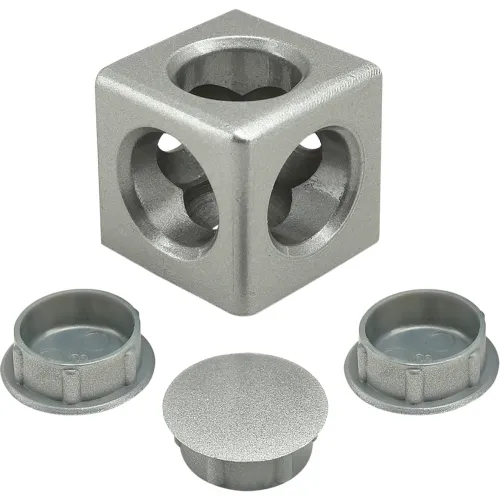

The 3 way - light squared corner connector is a die-cast external fastening method that is typically used to create a squared corner connection between three profiles. The fastener is lightweight and has three access holes; it includes the cover caps for the holes, to provide a finished look. The 3 way - light squared corner connector requires an end tap machining service on the mating profiles. The suggested hardware can be found on the "Suggested Hardware" tab.
Share
Spec Sheet
80/20® 15 Series 3 Way Corner Connector
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$18.75
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 1-3/4 |
| Dimension A | 5/16 |
| Dimension B | 1/8 |
Product Details
| Type | Corner Connector |
| Finish Type | Lacquered |
| Material | Aluminum |
| Series | 15 |
| Manufacturers Part Number | 14177 |
| Brand | 80/20 Inc |
