The universal dynamic right angle pivot nub is commonly used to create either a perpendicular or parallel dynamic pivot with full axial motion ranging from 0-90 degrees. The universal pivot nub requires no machining and can be easily assembled, lending itself to repositioning and reuse. The hardware to mount the nub to a profile is included. The suggested mounting hardware to attach the arm to the nub can be found on the "Suggested Hardware" tab.
Share
Spec Sheet

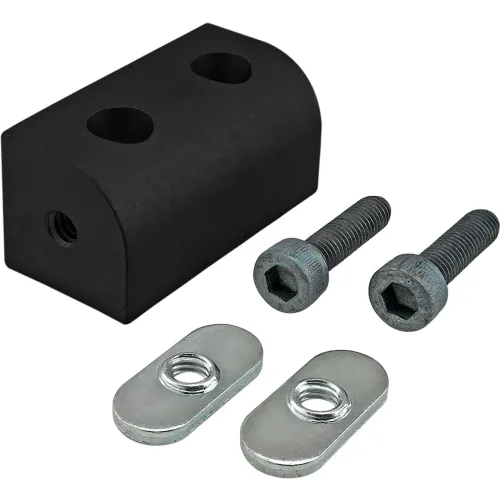

80/20® 25 Series Universal Right Angle Living Nub, Black
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$20.25
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 1-15/16 |
| Width | 1 in |
| Height | 1-1/4 in |
| Dimension A | 25 |
| Dimension B | 48.69 |
Product Details
| Type | Living Nub |
| Finish Type | Anodize |
| Material | Aluminum |
| Series | 25 |
| Manufacturers Part Number | 25-4027-BLACK |
| Brand | 80/20 Inc |
