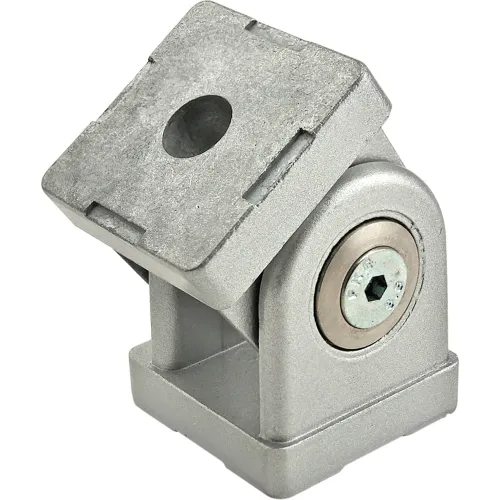

80/20® 30 Series 2 Hole - Pivot Joint without Slot, Die Cast Zinc

The 2 hole - pivot joint is an external fastening method that is lightweight yet sturdy. This connector can either mount to the end of a profile, which would require an end tap, or the insert tabs can be removed for mounting directly to the T-slot without any required machining services. The insert tabs include both an M8 and M10 size. The screws on the arms can be adjusted for movement or fixed in one position. The suggested hardware for the 2 hole - pivot joint can be found on the "Suggested Hardware" tab.

The H-6ANP is a chrome plated single joint with antistatic properties (ESD) used to assemble the HJ-6ANP joint set. This part is used to create joint sets with a high rotational capacity. The HJ-6ANP allows the largest corner radius of any Flexpipe joint sets. Technical Informations: This connector is designed with 2 striations for a better on the plastic coating of the 28 mm pipes. The H-6ANP Flexpipe joint is compatible with many other pipe and connector systems.

The H-5NP is a anti-static metal single joint used to assemble the HJ-6NP Flexpipe joint set. This connector can also be grouped with another H-5NP to connect a pipe and a surface. The main difference between using this technique and using the HJ-15NP connector is that the surface will be aligned with the pipe center and not the tube's edge when using the HJ-15NP. The H-5NP was designed with two internal striations for greater grip on the pipe's outer coating. Be sure to reinforce the H-5NP if you are using them to support a surface. This can be done easily with two F-A858 screws.

The H-5 is a metal single joint used to assemble the HJ-6 Flexpipe joint set. This connector can also be grouped with another H-5 to connect a pipe and a surface. The main difference between using this technique and using the HJ-15 connector is that the surface will be aligned with the pipe center and not the tube's edge when using the HJ-15. The H-5 was designed with two internal striations for greater grip on the pipe's outer coating. Be sure to reinforce the H-5 if you are using them to support a surface. This can be done easily with two F-A85/8 screws. The H-5 comes in a nickel-plated ...

H-2NP is one of the 4 main fittings used in most of the Flexpipe builds.
