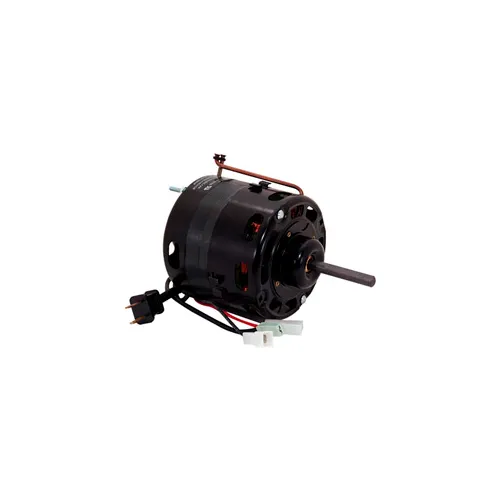

Century 97, 4 5/16" Shaded Pole Motor - 1050 RPM 115 Volts

Energy efficient Different capacitor / Speed combinations Designed for 370V capacitor (not furnished) Extended thru bolts Class B insulation Continuous duty, air over Mounts by belly band, thru bolts or shell holes Rheem mounting holes in shell Permanent Split Capacitor Ball Bearings 48 Frame 60 HZ Automatic Overload Totally Enclosed Single Phase 60ºC ambient

Century 5" Split Capacitor Unit Heater Motor - 1075 RPM 115 Volts Shaded Pole and Permanent Split Capacitor Sleeve Bearing 42 Frame 40ºC Ambient Continuous duty, air over 1/2 diameter flatted shaft Automatic Overload Single Phase 60 HZ

Century 5 5/8" HeatMaster Canopy Motor - 200-230/460 Volts 1140 RPM 70ºC (158ºF) max ambient UL/CSA approved Class F insulation 3-Year Limited Warranty from date of manufacture date code, or 2 years from the date of installation Energy-efficient PSC and three phase design Patented fan canopy Vertical shaft up only Open, air over Double sealed ball bearing Reversible 60 HZ only Totally Enclosed Single Speed 48 Frame UL and CSA recognized

Century 5 5/8" HeatMaster Motor - 208-230 Volts 1075 RPM 70ºC (158ºF) max ambient UL/CSA approved Class F insulation High-temperature UL/CSA approved overload protector 3-Year Limited Warranty from date of manufacture date code, or 2 years from the date of installation Energy-efficient PSC design Water-resistant reversing plug Double sealed ball bearing, or dependable all-angle sleeve bearings All-angle mount Mounts by belly band, adjustable extended thru-bolts, or Rheem mounting holes, with screws supplied Lead length 36 60 HZ 48 Frame Totally Enclosed Single Speed Continuous duty, air ...

Automatic Overload Class B moisture resistant Insulation 1.0 Service Factor 5/8 inch diameter shaft with both keyway and flat 60º C ambient Single Speed Reversible Rotation
