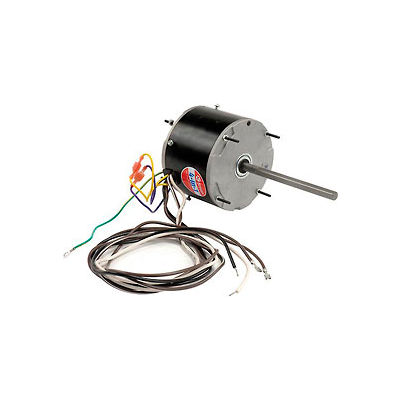

Century ORM5458, 5 5/8" Condenser Fan Motor - 208-230 Volts 1075 RPM

Century ORM5458, 5 5/8" Condenser Fan Motor - 208-230 Volts 1075 RPM

Item #: WBB186286

(3)

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $64.95

Save $3.25 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Century 5 5/8" Condenser Fan Motor - 208-230 Volts 1075 RPM

  • Centurys expanded line of 4-in-1 motors replace hundreds of the most popular 1/3, 1/4, 1/6 and 1/8 HP, 48-frame condenser fan motors currently installed with one simple connection.
  • No capacitors to switch or complicated wiring diagrams to follow.
  • Our 4-in-1 motors come in energy-efficient PSC designs, are rated
  • for 1/3-1/8 HP, 208-230 Volt, 825 and 1075 RPM, with totally enclosed
  • construction and are available in all angle sleeve bearing or rugged ball
  • bearing designs.
  • These 4-in-1 motors allow the service contractor to have the right motor
  • for the job for quicker service calls. That means more calls completed
  • per day
  • Multi-application condenser fans
  • Energy-efficient PSC design
  • Available in dependable quiet sleeve bearing or double sealed ball
  • bearings
  • Mounts by belly band, thru bolts, or Rheem mounting holes, with
  • screws supplied.
  • Lead length 36 inch leads
  • 60 degree C ambient
  • Class B insulation
  • Removable drain plugs each end
  • UL and CSA approved
  • 48Y Frame
  • 60 HZ
  • Automatic Overload
  • Single Phase
  • Totally Enclosed
  • Capacitor: POC7.5 Capacitor is not included


  • BRAND Century
  • MANUFACTURERS PART NUMBER ORM5458
  • HORSEPOWER 1/3
  • MOTOR RPM 60Hz 1075
  • VOLTAGE 208-230
  • PHASE 1
  • FRAME 48
  • ENCLOSURE TYPE Totally Enclosed
  • HERTZ 60
  • SPEEDS 1
  • ROTATION CW
  • RATED RPM 1075
  • MOUNTING Tapped Holes
  • FULL LOAD AMPS 2
  • SHAFT DIAMETER 0.5
  • SHAFT LENGTH 5
  • BEARING TYPE Sleeve
  • SERVICE FACTOR 1
  • LENGTH LESS SHAFT INCHES 4-1/8
  • APPROVALS OR CERTIFICATIONS UL and CSA
  • is_motor Yes
  • RPM RANGE 1001-1100
  • MOTOR TYPE Permanent Split Capacitor
  • HERTZ (HZ) 60
  • COMPATIBLE WITH/REPLACES Emerson K55HXTDD-8385 | Rheem 512066811, 512305511
